350G XL Lift Series

Fast Mechanical Lift for Maximum Payloads

Our strongest, most advanced portable mast for mission-critical applications in the most demanding environments

Made in America.

BlueSky Mast is committed to securing the American supply chain. Our mast systems are designed, machined, & assembled in the U.S.A.

350G XL Lift Series

Fast Mechanical Lift for Maximum Payloads
BlueSky Mast's 350G XL Lift Systems are strong, advanced portable mast platforms capable of supporting heavy payloads ranging from 45 lbs. at 18 meters up to 175 lbs. at 5 meters. It can be deployed by two trained soldiers in anywhere from 20 to 45 minutes depending on height.

Model Heights:

5 to 18 meters / 17.5 to 59 ft.

Payload Capacity:

45 to 175 lbs

(See Capabilities Chart)

Wind Loading:

90 mph

Deployment Time:

2-4

people;

20-45 minutes

Outside Diameter:

3.5 Inches

Testing: MIL-STD-810G

Transport:

Two 62 x 21 x 14 inch hard cases

Tested and proven in the USA.

Distance communication will always require elevation, so getting a mast is not a choice. It’s a requirement. BlueSky Mast has pioneered the consolidation of video / voice / data communication, surveillance, and even lighting protection onto one mast platform. We build the world’s most advanced multi-purpose, portable mast platforms for military communications and surveillance.

Mission: Mitigate the need for multiple mast systems.

The BlueSky Modular Mast Platform can be used to elevate multiple devices on a single mast in order to enhance communications and situational awareness. The highly-adaptive design allows for quick set-up in the field while reducing employment complexity, manpower requirements, and overall footprint.

minimize set-up time & manpower requirements in the field.

A BlueSky Mast System gives you invaluable advantages over the traditional array of separate devices. Deployed in minutes, it can be configured to support multiple applications, eliminating the need for anynumber of other masts.

Features:
  • Patented tripod design
  • Telescoping tripod legs
  • 3.5 inch OD interlocking mast sections

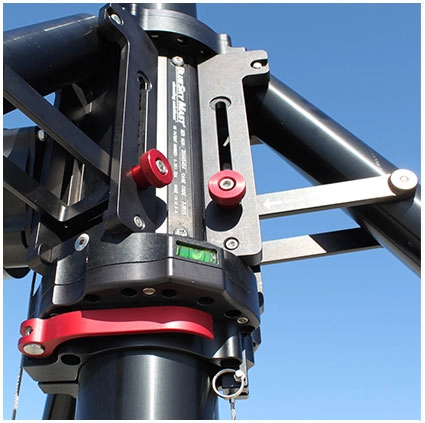

  • Fast mechanical lift system
  • Color coded guy rings and ropes

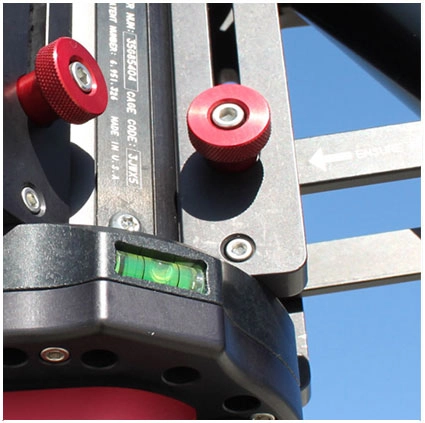

  • Three bubble level
  • Aerospace aluminum alloy construction

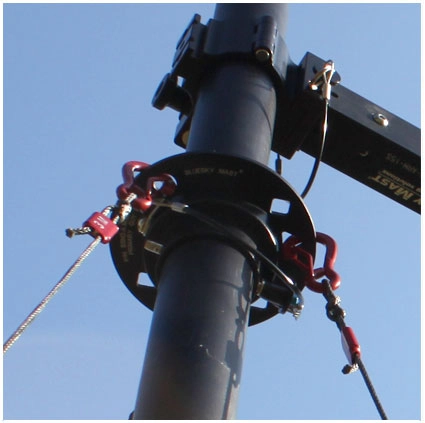

  • Color coded, free spinning guy rings for directional control
  • Guy ropes made of Spectra Cord, a woven fiber 10 times stronger than common cable
Primary Uses:
  • UAS / cUAS
  • Multiple antenna configurations
  • LTE / cellular
  • Wireless data communicaitons
  • Military RF communications
  • Video surveillance / security systems
  • Custom applications
