AL1 Standard Series

Manual Push Up System

Lightweight Payloads

Made in America.

BlueSky Mast is committed to securing the American supply chain. Our mast systems are designed, machined, & assembled in the U.S.A.

Choose your mast system based on height:
2
M -
7.5
Ft
3
M -
10.5
Ft
4
M -
13.5
Ft
5
M -
16.5
Ft
6
M -
19.5
Ft
7
M -
22.5
Ft
8
M -
25.5
Ft
9
M -
28.5
Ft
10
M -
31.5
Ft

AL1 Standard Series

Manual Push Up System
This is the lightest and most portable of all the BlueSky Mast Systems and can support payloads ranging from 30 lbs. at 10 meters up to 50 lbs. at 2 Meters. Select a model height and payload from the dropdown menu below.It can be deployed by a single person in anywhere from 2 to 15 minutes depending on height and is predominantly used for lightweight applications such as such as smaller, single antenna deployments and lightning protection systems.

Model Heights:

2 to 15 meters (7.5 to 46.5 ft)

Payload Capacity:

10 - 50 lbs *

(See Capabilities Chart)

Wind Loading:

70 mph

Deployment Time:

1-2

people;

2-30 minutes *

Outside Diameter:

2.0 inch

Testing: MIL-STD-810G

Transport:

(1) Custom wheeling carry bag; Optional hard case upgrade

Choose your mast system
Description
Features
Primary Uses
Support Documents

This is the lightest and most portable of all the BlueSky Mast Systems and can support payloads ranging from 30 lbs. at 10 meters up to 50 lbs. at 2 Meters.

It can be deployed by a single person in anywhere from 2 to 15 minutes depending on height and is predominantly used for lightweight applications such as such as smaller, single antenna deployments and lightning protection systems.

AL1 Standard Series system packs down into one custom wheeling carry bag. Optional hard case upgrade for the BlueSky Mast AL1 Standard series.

Features:

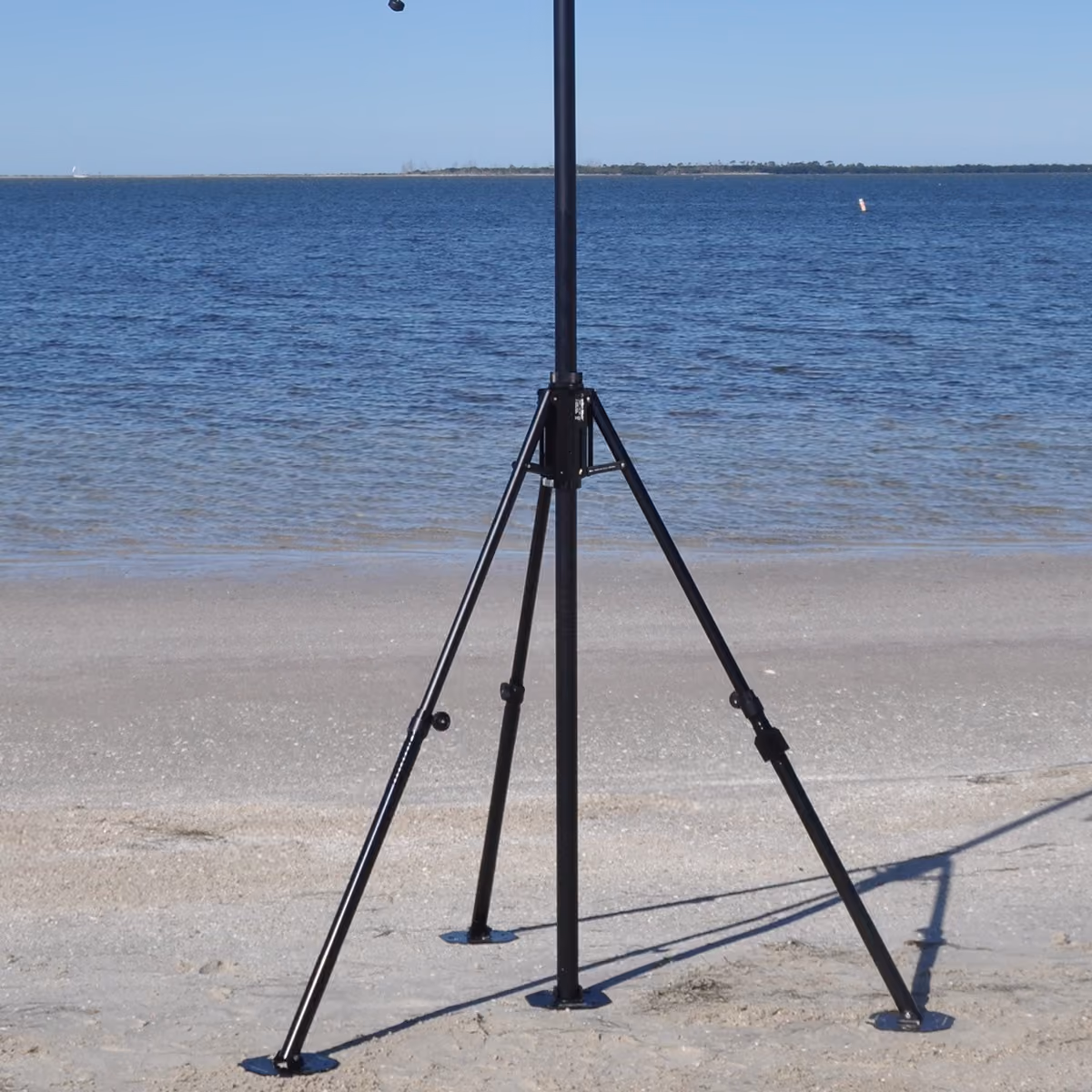

  • Patented tripod design with cam lock system
  • Telescoping tripod legs
  • Compass and bubble levels
  • Lightweight 2 inch OD interlocking mast sections
  • Aerospace aluminum alloy construction
  • Color coded, free spinning guy rings for directional control
  • Guy ropes made of Spectra Cord, a woven fiber 10 times stronger than common cable
Primary Uses:
  • Tactical RF communication
  • Lightning protection systems
Accessories Guide
Product Brochure
Load Tables
Quick Reference Sheet
User Manual
Training Video
