AL2 Standard Series
Manual Push Up System
Designed for portability and rapid deployment / heavier payloads
Made in America.
BlueSky Mast is committed to securing the American supply chain. Our mast systems are designed, machined, & assembled in the U.S.A.
AL2 Standard Series
Manual Push Up System
The AL2 Standard Series can support payloads ranging from 100 lbs at 2 meteres to 50 lbs at 10 meters. Used for video and surveillance applications, HF long wire communications, and hybrid applications.
Model Heights:
2 to 10 meters (7.5 ft to 31.5ft)
Payload Capacity:
See capabilities chart
(See Capabilities Chart)
Wind Loading:
70 mph
Deployment Time:
1 to 2
people;
2 to 30 minutes
Outside Diameter:
2.0 inches
Testing: MIL-STD-810G
Transport:
(1) Custom 54 x 14 x 14 inch wheeling carry bag | (optional) Hard Case Upgrade 62 x 21 x 14 inches
.webp)
The AL2 Standard Series can support payloads ranging from 100 lbs at 2 meteres to 50 lbs at 10 meters. Used for video and surveillance applications, HF long wire communications, and hybrid applications.
Features:

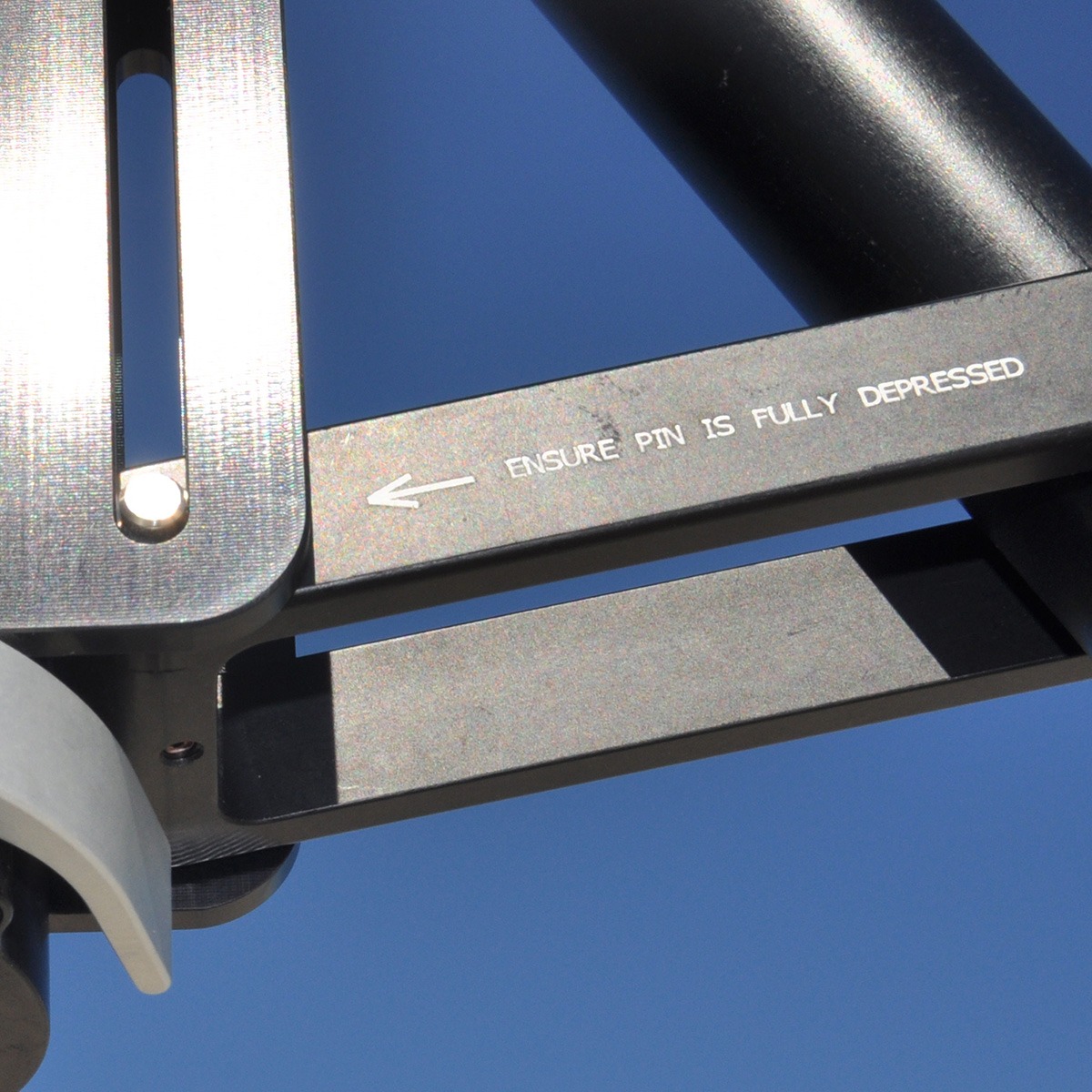

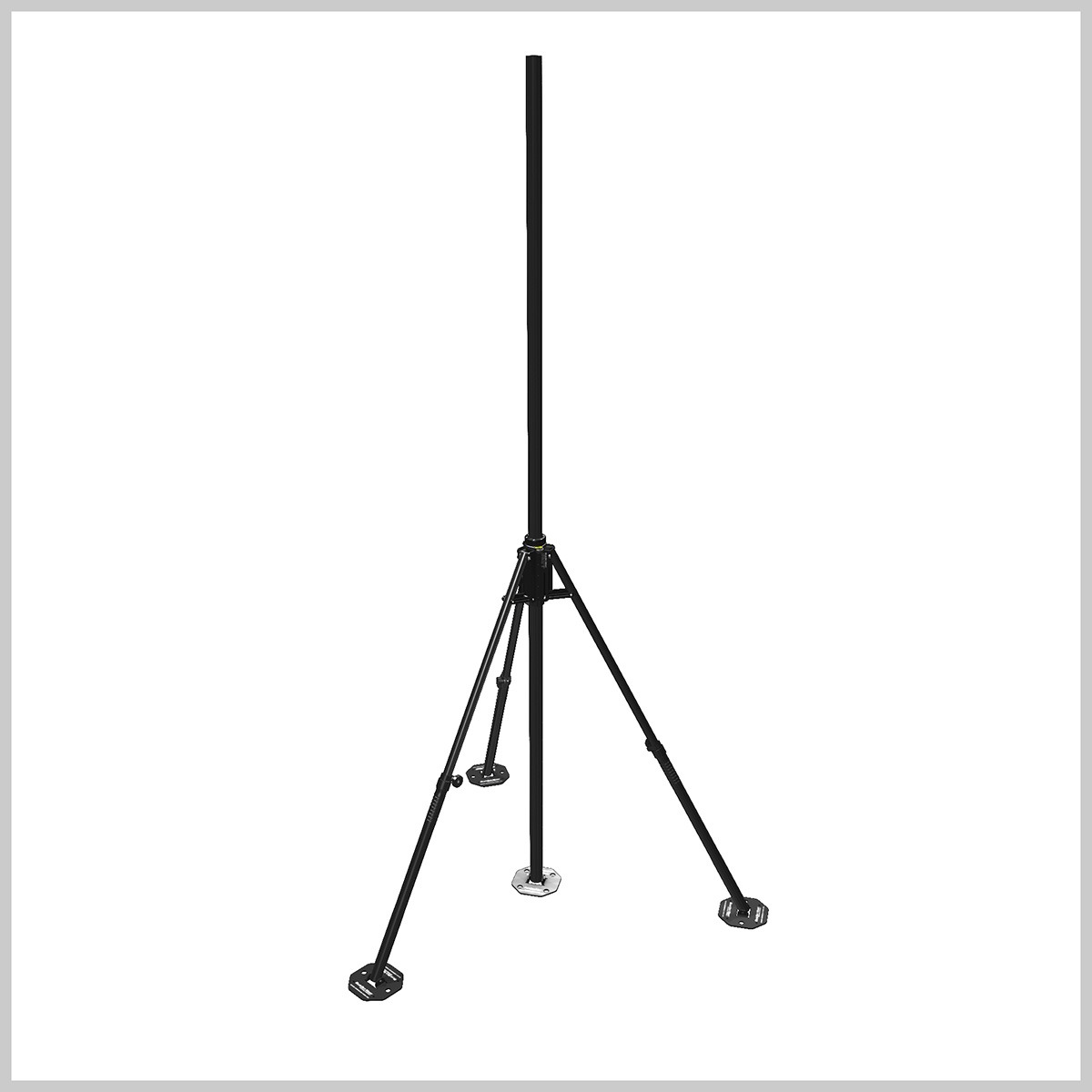

- Patented tripod design with cam lock system
- Telescoping tripod legs

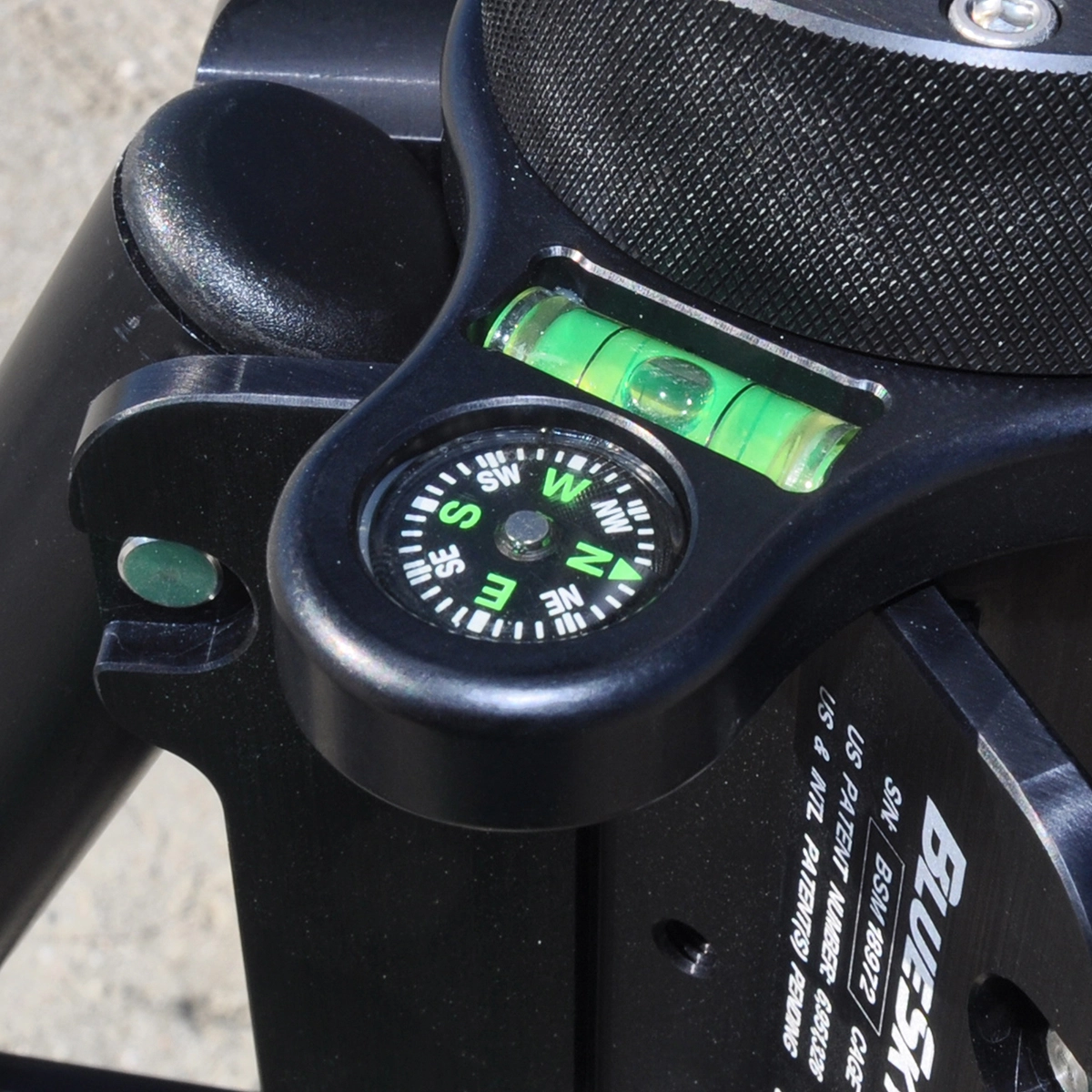

- Compass and bubble levels
- Lightweight 2in. OD interlocking mast sections
- Aerospace aluminum alloy construction
- Color coded, free spinning guy rings for directional control
- Guy ropes made of Spectra Cord, a woven fiber 10 times stronger than common cable
Primary Uses:
- Tactical RF communications
- Wireless data
- UAS / cUAS
- Custom applications
