200 Lift Series - AL2

Fast Mechanical Lift System

The lift series has a stronger tripod and uses a winch to deploy the mast sections, which allows for a more controlled, easier and safer deployment compared to the standard series – manual push up systems. Select a model height and payload from the dropdown menu below.Used for Tactical RF Communications, Video Surveillance Systems, Weather Stations and Wireless Data Configurations.‍

Model Heights:

2 to 15 meters (7.5 to 46.5ft)

Payload Capacity:

20 to 100 lbs.

(See Capabilities Chart)

Wind Loading:

70 mph

Deployment Time:

1-2

people;

2-30 minutes *

Outside Diameter:

2 inch

Testing: MIL-STD-810G

Transport:

(1) 54 x 14 x 14 inch wheeling carrying bag

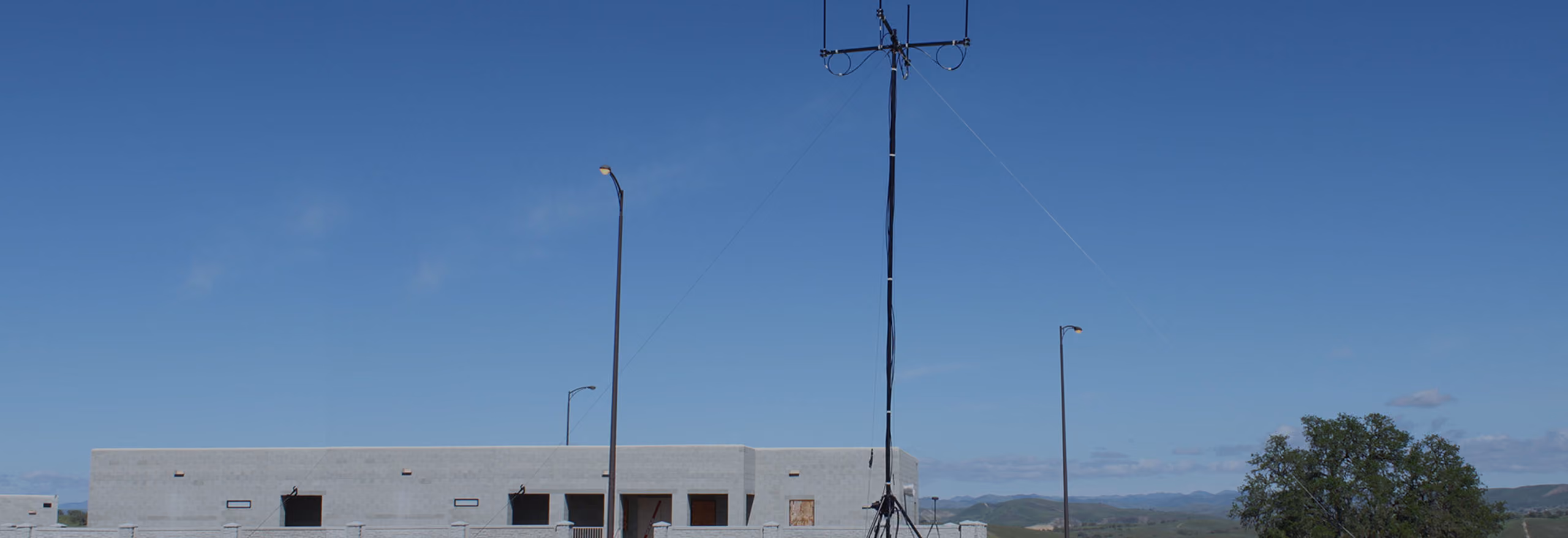

The 200 Lift Series - AL2 s a lightweight, highly mobile tactical mast system featuring an integrated mechanical winch and a reinforced cam lock tripod. Available in heights ranging from 2 to 15 meters and capable of supporting payloads from 20 to 100 lbs., it provides ground teams with a safe, controlled alternative to manual push-up masts for deploying tactical RF communications, video surveillance, weather stations, and wireless data equipment.

Features:

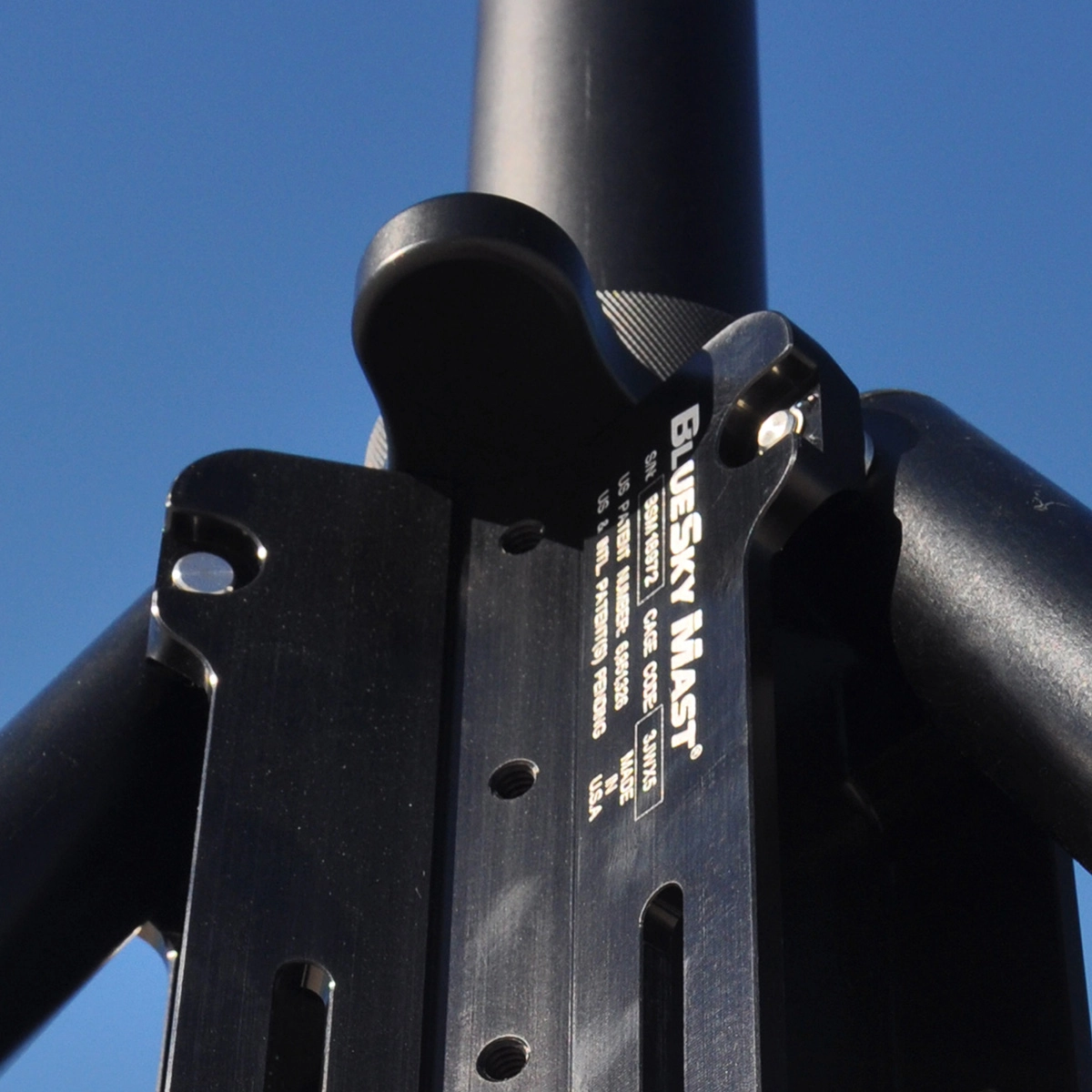

Patented tripod design with cam lock system
Telescoping tripod legs
Lightweight 2 inch OD interlocking mast sections
Three bubble level
Color coded, free spinning guy rings for directional control
Guy ropes made of Spectra Cord, a woven fiber 10 times stronger than common cable

Primary Uses:

UAS / cUAS
Tactical RF communications
Wireless data
Video surveillance

Accessories Guide

Product Brochure

Load Tables

Quick Reference Sheet

User Manual

Training Video

Key Capabilities

Elevated Tactical RF Communications: Lifts antennas and transceivers above ground clutter to extend signal range, improve line-of-sight propagation, and maintain robust connectivity across complex terrain.

Stable Video Surveillance Positioning: Provides a rigid, elevated platform for optical and thermal cameras, securing high-vantage situational awareness for perimeter monitoring and tactical observation.

Autonomous Weather Station Support: Elevates meteorological sensors to optimal heights to capture accurate, unobstructed atmospheric data in the field.

Wireless Data Link Optimization: Elevates wireless data configuration hardware to bridge gaps over obstacles and maximize throughput for mobile tactical command posts.

Capabilities Chart

The payload is the total weight of all devices, accessories, and cabling being mounted on the mast.

System P/N	System Height (Feet)	System Height (Meters)	Payload (lbs)	Payload (kg)
200H-W-L202-BSM-000	7.5	2	100	45.4
200H-W-L203-BSM-000	10.5	3	85	38.6
200H-W-L204-BSM-000	13.5	4	70	31.8
200H-W-L205-BSM-000	16.5	5	65	29.5
200H-W-L206-BSM-000	19.5	6	60	27.3
200H-W-L207-BSM-000	22.5	7	57.5	26.1
200H-W-L208-BSM-000	25.5	8	55	24.9
200H-W-L209-BSM-000	28.5	9	50	22.7
200H-W-L210-BSM-000	31.5	10	50	22.7
BSM2-W-L211-AL2-000	34.5	11	40	18.1
BSM2-W-L212-AL2-000	37.5	12	35	15.9
BSM2-W-L213-AL2-000	40.5	13	30	13.6
BSM2-W-L214-AL2-000	43.5	14	25	11.3
BSM2-W-L215-AL2-000	46.5	15	20	9.1

Capabilities Chart
200H-W-L202-BSM-000	System Height (ft)	7.5	System Height (m)	2	Payload (lbs)	107.1	Payload (kg)	45.4	200H-W-L203-BSM-000	System Height (ft)	10.5	System Height (m)	3	Payload (lbs)	110.2	Payload (kg)	38.6	200H-W-L204-BSM-000	System Height (ft)	13.5	System Height (m)	4	Payload (lbs)	114.7	Payload (kg)	31.8	200H-W-L205-BSM-000	System Height (ft)	16.5	System Height (m)	5	Payload (lbs)	117.8	Payload (kg)	29.5	200H-W-L206-BSM-000	System Height (ft)	19.5	System Height (m)	6	Payload (lbs)	120	Payload (kg)	27.3	200H-W-L207-BSM-000	System Height (ft)	22.5	System Height (m)	7	Payload (lbs)	124	Payload (kg)	26.1	200H-W-L208-BSM-000	System Height (ft)	25.5	System Height (m)	8	Payload (lbs)	128	Payload (kg)	24.9	200H-W-L209-BSM-000	System Height (ft)	28.5	System Height (m)	9	Payload (lbs)	131	Payload (kg)	22.7	200H-W-L210-BSM-000	System Height (ft)	31.5	System Height (m)	10	Payload (lbs)	133	Payload (kg)	22.7	BSM2-W-L211-AL2-000	System Height (ft)	34.5	System Height (m)	11	Payload (lbs)	132.1	Payload (kg)	18.1	BSM2-W-L212-AL2-000	System Height (ft)	37.5	System Height (m)	12	Payload (lbs)	135.2	Payload (kg)	15.9	BSM2-W-L213-AL2-000	System Height (ft)	40.5	System Height (m)	13	Payload (lbs)	138.3	Payload (kg)	13.6	BSM2-W-L214-AL2-000	System Height (ft)	43.5	System Height (m)	14	Payload (lbs)	141.4	Payload (kg)	11.3	BSM2-W-L215-AL2-000	System Height (ft)	46.5	System Height (m)	15	Payload (lbs)	144.5	Payload (kg)	9.1
