200 Standard Series - AL1

Manual Push Up System

This is the lightest and most portable of all the BlueSky Mast Systems and can support payloads ranging from 30 lbs. at 10 meters up to 50 lbs. at 2 Meters. Select a model height and payload from the dropdown menu below.It can be deployed by a single person in anywhere from 2 to 15 minutes depending on height and is predominantly used for lightweight applications such as such as smaller, single antenna deployments and lightning protection systems.

Model Heights:

2 to 15 meters (7.5 to 46.5 ft)

Payload Capacity:

10 - 50 lbs *

(See Capabilities Chart)

Wind Loading:

70 mph

Deployment Time:

1-2

people;

2-30 minutes *

Outside Diameter:

2.0 inch

Testing: MIL-STD-810G

Transport:

(1) Custom wheeling carry bag; Optional hard case upgrade

The 200 Standard Series - AL1 is the lightest and most portable manual push-up mast system offered by BlueSky Mast. Spanning heights from 2 to 10 meters and supporting payloads ranging from 30 lbs at 10 meters up to 50 lbs at 2 meters, it is engineered for rapid solo deployment in 2 to 15 minutes, making it the ideal ultralight platform for compact single-antenna setups and lightning protection systems in austere environments.

Features:

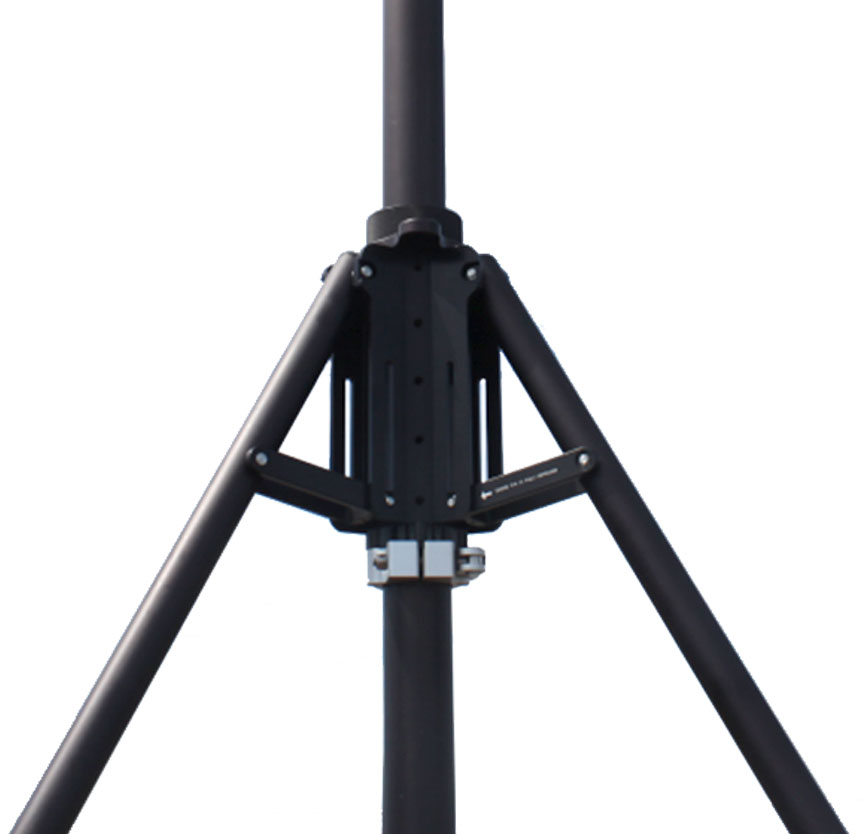

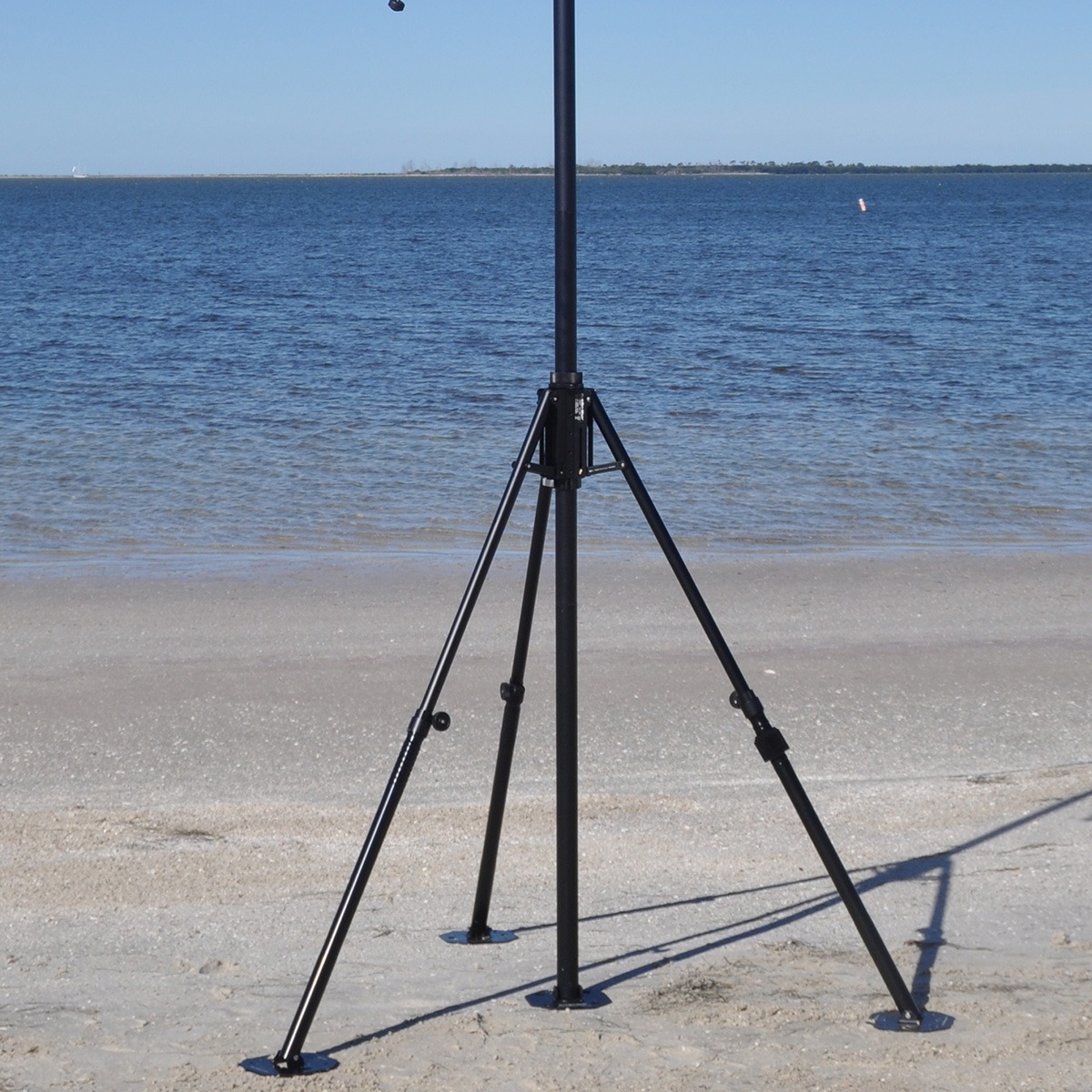

Patented tripod design with cam lock system
Telescoping tripod legs
Compass and bubble levels
Lightweight 2 inch OD interlocking mast sections
Aerospace aluminum alloy construction
Color coded, free spinning guy rings for directional control
Guy ropes made of Spectra Cord, a woven fiber 10 times stronger than common cable

Primary Uses:

Tactical RF communication
Lightning protection systems

Accessories Guide

Product Brochure

Load Tables

Quick Reference Sheet

User Manual

Training Video

Key Capabilities

Single-Antenna Tactical Communications: Provides a stable, elevated structural mount to optimize signal range and propagation for individual tactical radios and communication antennas.

Lightweight Sensor and Meteorological Elevation: Safely elevates compact environmental sensors, weather instruments, or low-weight monitoring packages above surface-level interference.

Rapid Solo Reconnaissance Setup: Enables a single operator to quickly deploy lightweight surveillance or communications gear in austere environments within 2 to 15 minutes.

Lightning Protection Deployment: Serves as an effective elevated platform for positioning transient protection and lightning mast rods to safeguard remote field installations and command posts.

Capabilities Chart

The payload is the total weight of all devices, accessories, and cabling being mounted on the mast.

System P/N	System Height (Feet)	System Height (Meters)	Payload (lbs)	Payload (kg)
BSM2-M-M102-AL1-000	7.5	2	58.2	22.7
BSM2-M-M103-AL1-000	10.5	3	60.2	21.5
BSM2-M-M104-AL1-000	13.5	4	62.1	20.4
BSM2-M-M105-AL1-000	16.5	5	64	19.3
BSM2-M-M106-AL1-000	19.5	6	65.9	18.1
BSM2-M-M107-AL1-000	22.5	7	74	17
BSM2-M-M108-AL1-000	25.5	8	75.9	1
BSM2-M-M109-AL1-000	28.5	9	77.9	14.7
BSM2-M-M110-AL1-000	31.5	10	80	13.6

Capabilities Chart
BSM2-M-M102-AL1-000	System Height (ft)	7.5	System Height (m)	2	Payload (lbs)	50	Payload (kg)	22.7	BSM2-M-M103-AL1-000	System Height (ft)	10.5	System Height (m)	3	Payload (lbs)	47.5	Payload (kg)	21.5	BSM2-M-M104-AL1-000	System Height (ft)	13.5	System Height (m)	4	Payload (lbs)	45	Payload (kg)	20.4	BSM2-M-M105-AL1-000	System Height (ft)	16.5	System Height (m)	5	Payload (lbs)	42.5	Payload (kg)	19.3	BSM2-M-M106-AL1-000	System Height (ft)	19.5	System Height (m)	6	Payload (lbs)	40	Payload (kg)	18.1	BSM2-M-M107-AL1-000	System Height (ft)	22.5	System Height (m)	7	Payload (lbs)	37.5	Payload (kg)	17	BSM2-M-M108-AL1-000	System Height (ft)	25.5	System Height (m)	8	Payload (lbs)	35	Payload (kg)	1	BSM2-M-M109-AL1-000	System Height (ft)	28.5	System Height (m)	9	Payload (lbs)	32.5	Payload (kg)	14.7	BSM2-M-M110-AL1-000	System Height (ft)	31.5	System Height (m)	10	Payload (lbs)	30	Payload (kg)	13.6

200 standard series - al1

Light Payloads

Ultralight, man-portable manual push up system
