BlueSky Robotics

Name: jEKYLL UGV
Brand: BlueSky Innovations
Availability: InStock

Automating Solutions

BlueSky Robotics is part of BlueSky Innovations operating out of Lexington, NC. BlueSky Innovations is dedicated to delivering products and solutions that close mission-critical capability gaps for the warfighter.

jEKYLL

Versatility at the Tactical Edge

jEKYLL is a compact, modular UGV for austere & contested environments. Operating independently or within a coordinated robotics team, jEKYLL UGV extends reach, reduces risk, & increases lethality at the tactical edge.

Small footprint, low-signature design
Rapid modular payload configuration
Heavy lift, push, and tow capability
Seamless tactical network integration
Tracked mobility for complex terrain

Specifications Contact Us

What you need. When you need it.

jEKYLL does it.

At the tactical edge, the hardest jobs are the ones that put people where you'd rather send a machine. jEKYLL was designed to go anywhere, with a compact size, durable frame, and a payload that matters. When the mission changes, the platform changes with it rather than waiting on a second system to show up.

31 in

Clears Standard 32" Doorway

1,764 lbs

Rated payload
(800 kg)

22,000 lbs

Rated Tow
20:1 Tow-to-Weight

IP66

Ingress Protection

> Reconnaissance

Conduct ISR and extend communications networks across distributed operations.

> Casualty Evacuation

Recover and transport casualties across the contested last tactical mile

> Security

Increase lethality & force protection with integrated kinetic or energy effectors, route clearance, & breaching operations

> Navigation

Tethered, remote, semi-autonomous, & autonomous operation: waypoint navigation, obstacle avoidance, & follow-me functionality

> Modular Configuration

One platform is mission-ready in under 15 minutes by two personnel. Integrates with Kongsberg CROWS remote weapon station, Starlink, Silvus StreamCaster MANET.

> Sustainnment

Deliver supplies, equipment, water, and power directly to units independently or in a robotic convoy

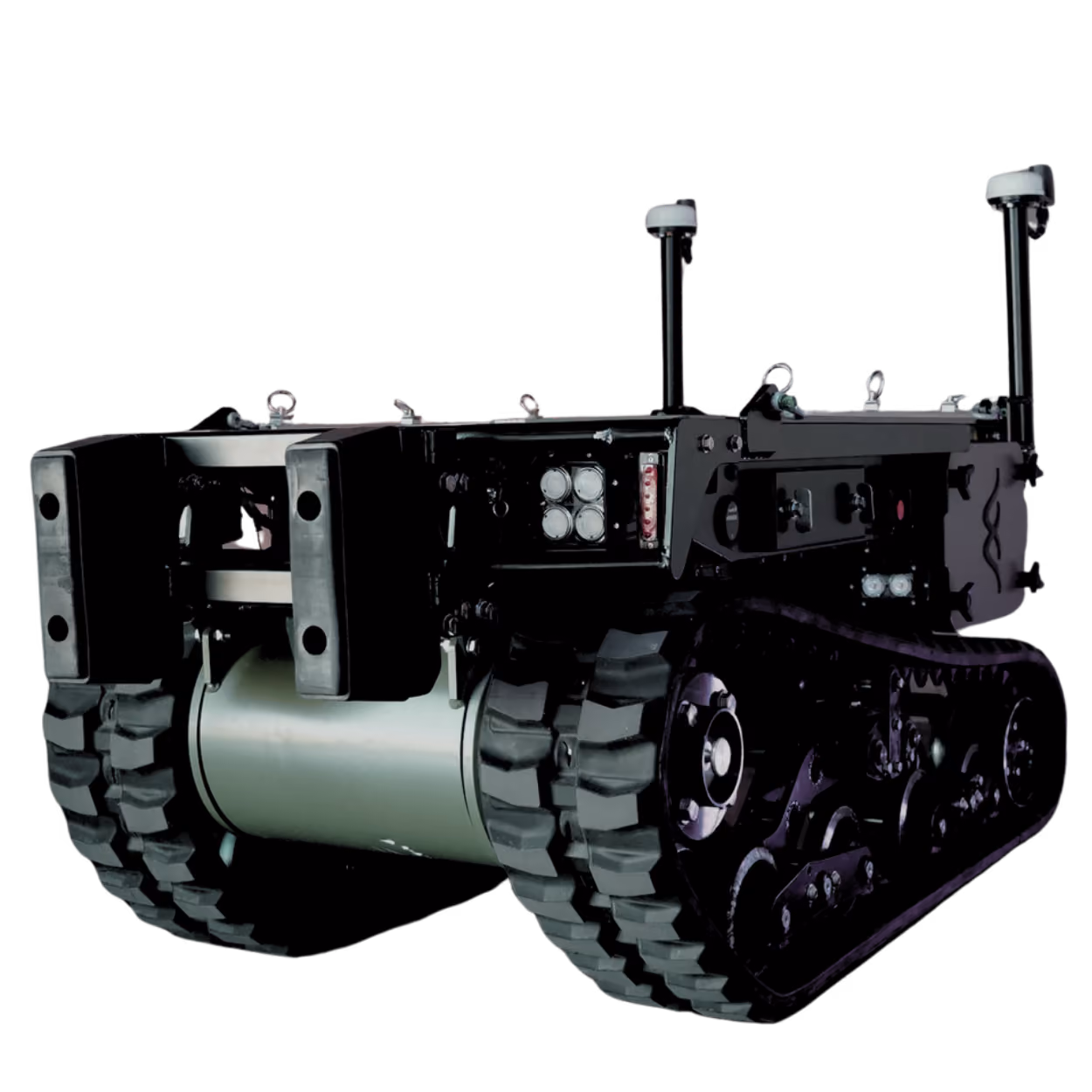

jEKYLL Standard Platform Configuration

Specifications & Configurations

Dimensions: W x L x H
(w/o payload)

790mm x 1600mm x 685mm

31" x 63" x 27"

Weight: (w/o payload)

500 kg

~1102 lbs.

Rated Payload Weight

800 kg

1764 lbs.

Mobility Type

Track System equipped with shock absorbers, tension system, anti-roll system and locking hubs

Speed²

0 - 12 km/h

7.5 mi/h

Range³

22 km

14 mi

Push / Tow

1,361 kg / 10,432 kg

3,000 lbs. / 23,000 lbs.

Ground Clearance¹

35 cm

13 in.

Slope¹

45 deg Climb & Descend
35 deg Side Slope

Operating Temperature

-40^o C Min / 200^o C Max

-40 F Min. / 392^o F Max

Environmental

Compliant to IP66 Standards

Power System

51.2 VDC / 160Ah Lithium-Ion Batteries; UN38.3 Certified

Charging Time

4.5 Hours (charger dependent)

Control Options

Standard: Wi-Fi, Radio, or Satcom; Optional: Autonomy Navigation Module

1. Variable according to the payload & terrain. 2. Speed limited by software.
3. Variable according to speed & payload.

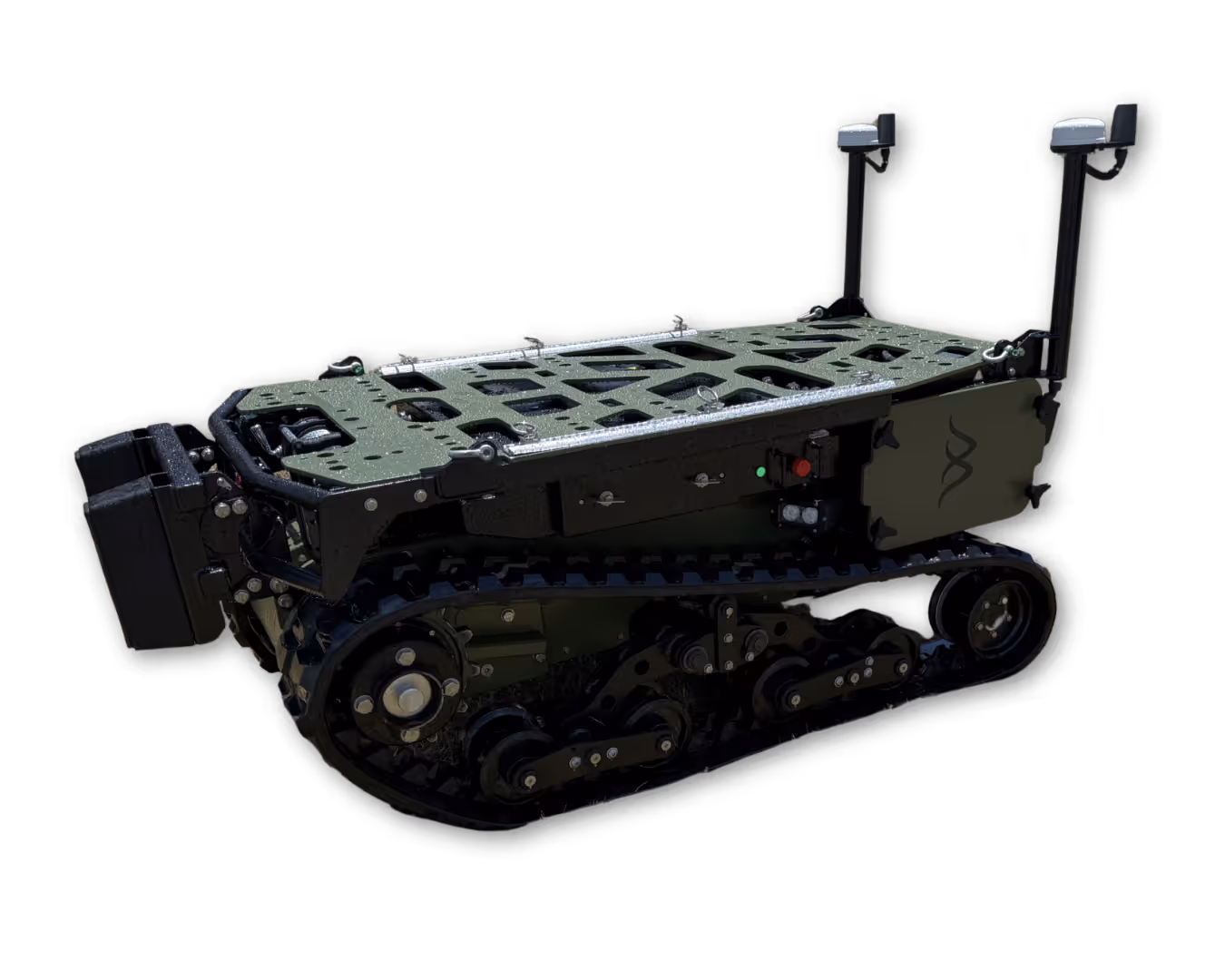

Tracked military-style unmanned ground vehicle base platform in dark green and black.
