ATSC Security & Surveillance System

Elevated Perimeter Security and High-Performance Air Surveillance

BlueSky 350 Series Mast + ATSC Ground-Based Security & Surveillance System

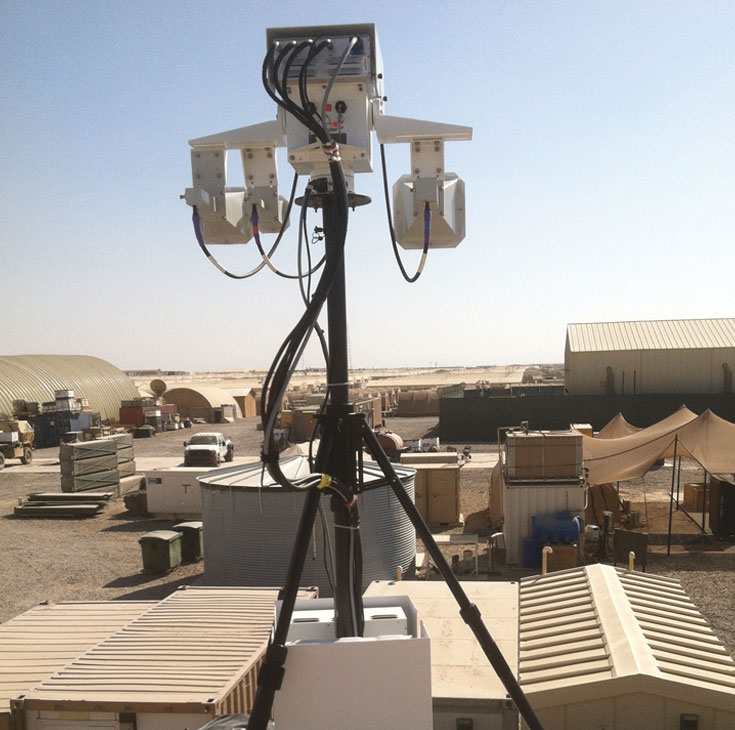

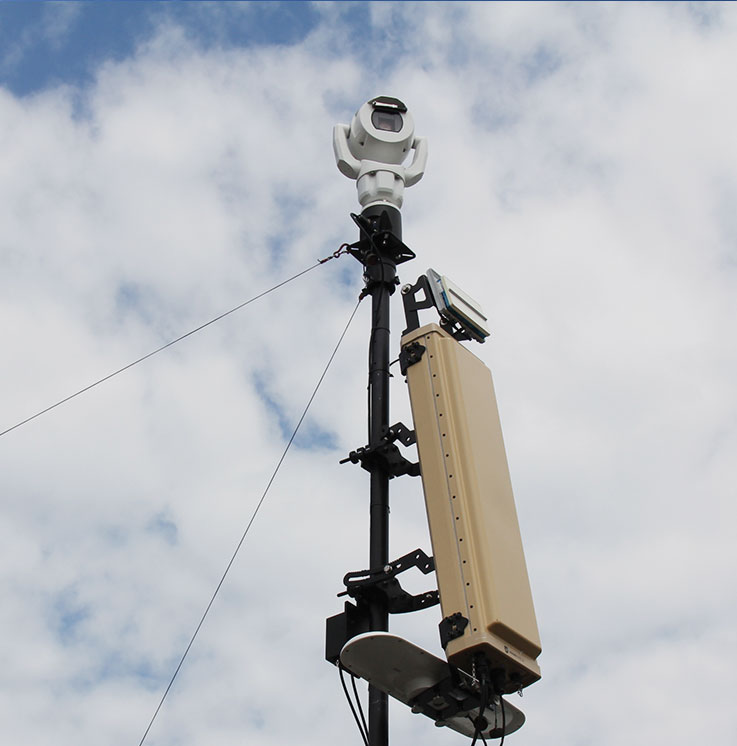

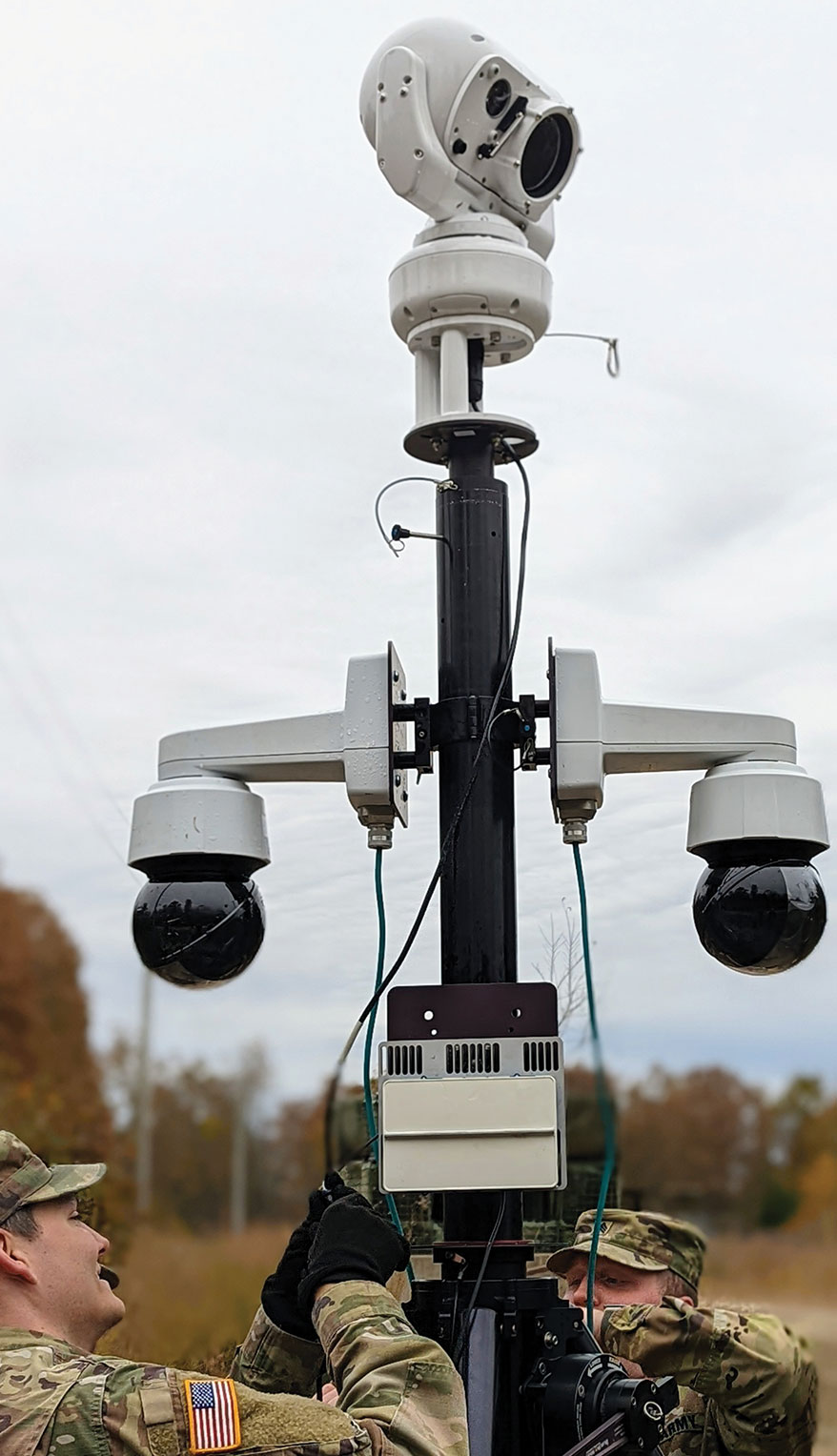

The BlueSky Mast 350 Series Fast Mechanical Lift System elevates the ATSC Security and Surveillance System (SSS), integrating the Silent Sentinel Aeron Thermal PTZ, Echodyne EchoGuard radar, and Cambium PTP700 tactical radio, to deliver comprehensive 4D perimeter awareness and reliable ground-to-air tracking for defense and critical infrastructure.
Collaborative Partner
ATSC Security & Surveillance System
BlueSky Mast System
350 Lift Series - 10 Meters (31.5 ft.)
Payload
ATSC Security and Surveillance System (SSS)
Benefits
The 350G series system lifts optical, thermal, and 4D radar payloads 10 meters above ground clutter to maximize line-of-sight acquisition across complex perimeters.
Engineered for rapid response in austere environments, the complete structural lift and multi-sensor package deploys in just 15 minutes with a two-person team.
The 3.5-inch outside diameter mast securely accommodates up to 125 lbs (56.7 kg) of advanced surveillance and communications hardware.
Tested to rigorous military standards, the structural mast packs down efficiently into two custom hard cases for reliable transport and survivability in harsh operational conditions.
Combines high-accuracy thermal PTZ cameras, 4D radar air surveillance, and COTS+ battle-tested Cambium PTP700 tactical wireless backhauls into a unified deployment package.
Key Capabilities

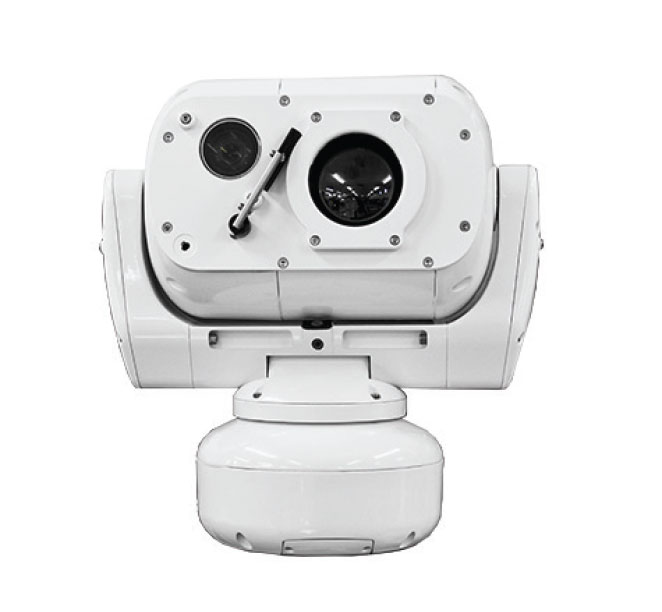

Silent Sentinel Aeron - Mid Range Thermal PTZ Suitable for maritime aviation perimeter and mobile security applications. With a high level of accuracy (0.05°), the Aeron is capable of fast pan and tilt speeds (up to 6 per second with s6O continuous rotation, absolute positioning and advanced illumination options. Echodyne Echogard Radar The leading 4D radar for high-performance around and air surveillance of defense, government, and critical infrastructure assets Cambium Networks PTP700 The most broadly deployed, battlefield optimized, COTS+(Commercial-off-the-shef + MILSPEC, turnkey tactical radio system. Currently deployed in support of multiple Federal Agency and Department of Defense Programs of Record (PORs).
Mission Kit

BlueSky Mast 350 Series 10m + ATSC

350 Lift Series - 10 Meters (31.5 ft.)

Integrated with

ATSC AERON - Mid Range Thermal PTZ

Model Heights:

10

meters /

31.5

feet

Payload Capacity:

56.7

kg /

125

lbs

(See Capabilities Chart)

Wind Loading:

144.8

km/h /

90

mph

Deployment Time:

15 minutes, 2 people

Outside Diameter:

3.5

inches

Testing: MIL-STD-810G

Transport:

(2) 62x21x14.5 Custom Hard Cases
