Cambium Networks PTP 700 Wireless Broadband Solution with FIPS 140 & MIL-SPEC Standards

Elevating Solutions

Cambium Networks PTP 700 Series Integrated with BlueSky Mast 350 Series Mast System

BlueSky Mast 350 Series mast provides rapid, portable, & toolless deployment of the Cambium PTP 700 Series Connectivity Kit.
Collaborative Partner
Cambium Networks PTP 700 Wireless Broadband Solution with FIPS 140 & MIL-SPEC Standards
BlueSky Mast System
350 Lift Series - 18 Meters (59 ft)
Payload

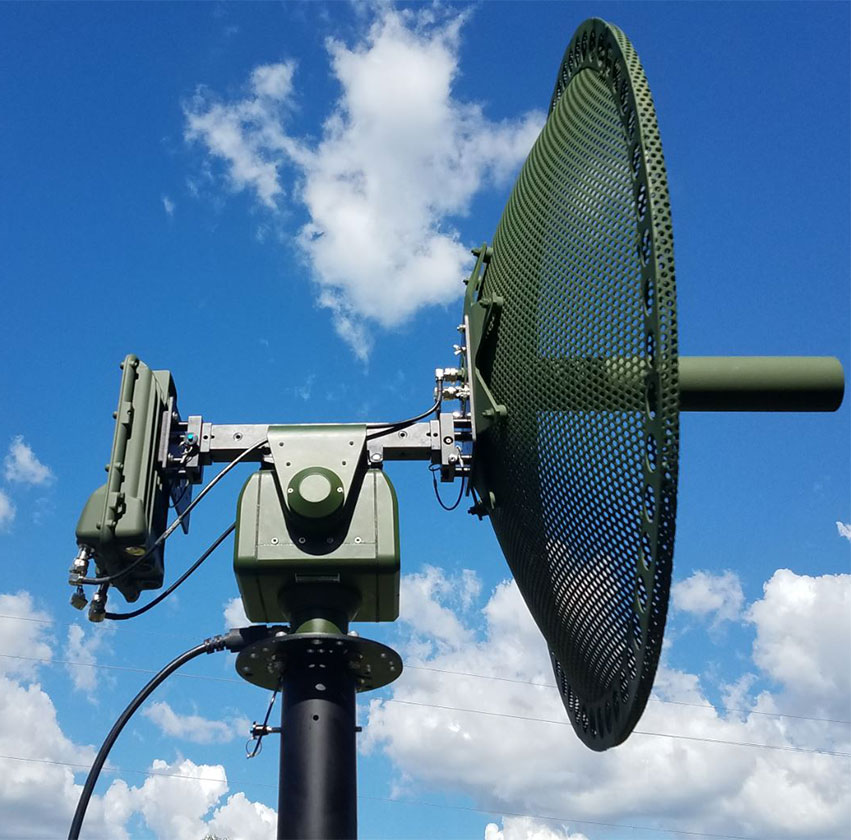

PTP 700 is a Point-to-Point wireless broadband solution for mission-critical communications in government, industrial, and public safety spaces. With FIPS 140 security and NTIA spectrum certifications, PTP 700 provides models with integrated antennas and/or connectorized for external antennas – allowing for flexible antenna selection at time of deployment. The PTP 700 Beam Steering ODU with integrated Smart Antenna provides electronic beamforming that allows for easy tactical installation and best-in-class interference mitigation in addition to the industry-leading spectral efficiency and processing capabilities of the PTP 700 family of products. PTP 700 supports two different frequency bands. The PTP 45700 covers 4.4 GHz to 5.925 GHz and the PTP 78700 covers 7.125 GHz to 8.5 GHz.
Benefits
The most broadly deployed, battlefield optimized COTS+ (Commercial-off-the-shelf + MILSPEC) turnkey tactical radio system
Currently deployed in support of multiple Federal Agency and Department of War Programs of Record (PORs).
The most highly reliable in the industry, offering agencies maximum value and affordability compared to any other system.

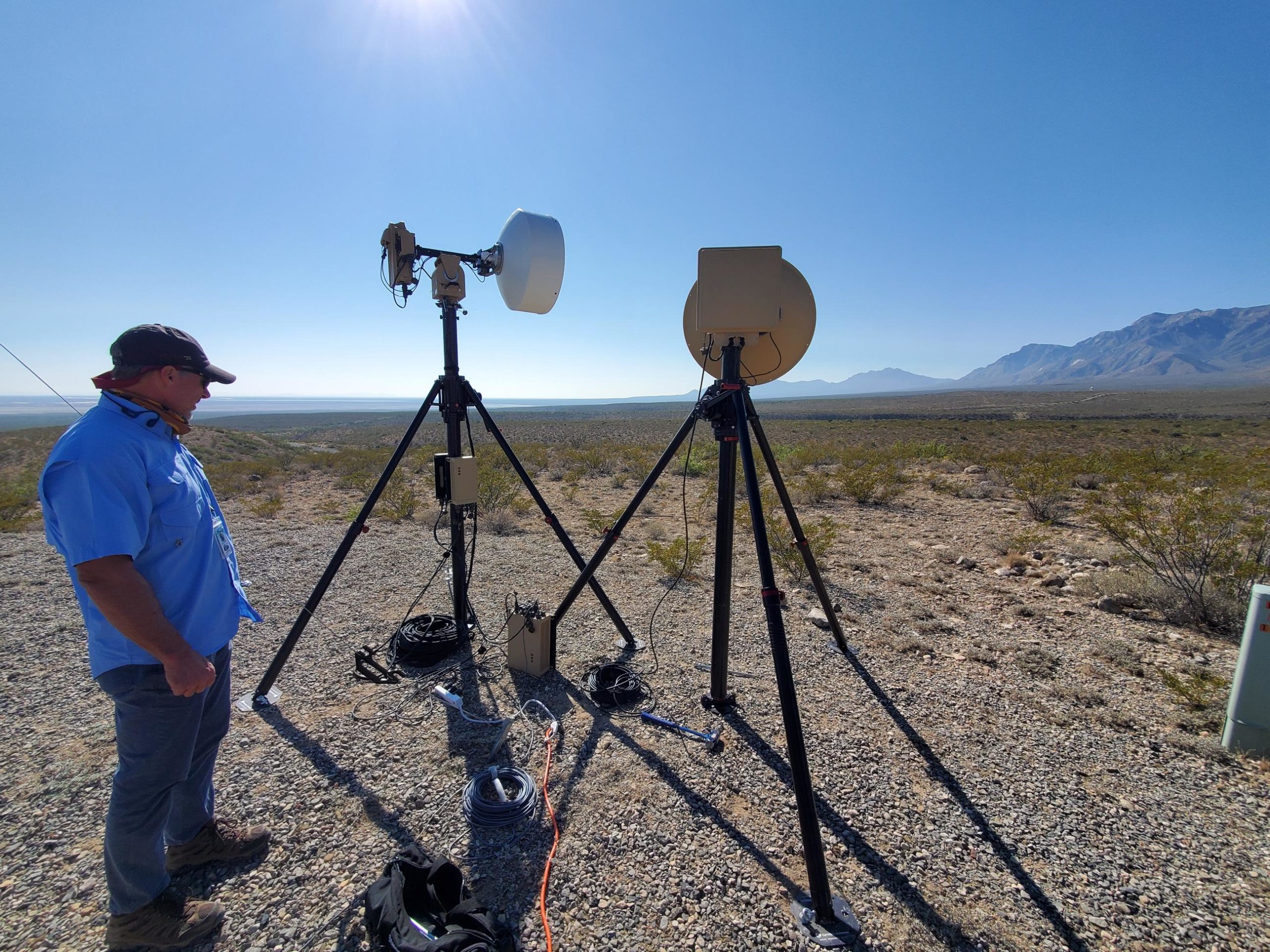

Simple to install, operate, and maintain. Can be quickly deployed by a two-person team in 30 minutes.
Key Capabilities
FIPS 140-2/3 DoD (J/F12) Spectrum Certified Dynamic Spectrum Optimization (DSO) Full-time spectrum analyer Simultaneous IPv4 and IPv6 1588v2/SyncE LPI/LPD Capabilities Efficient with low life cycle costs/TCO MIL-STD-810H
Mission Kit

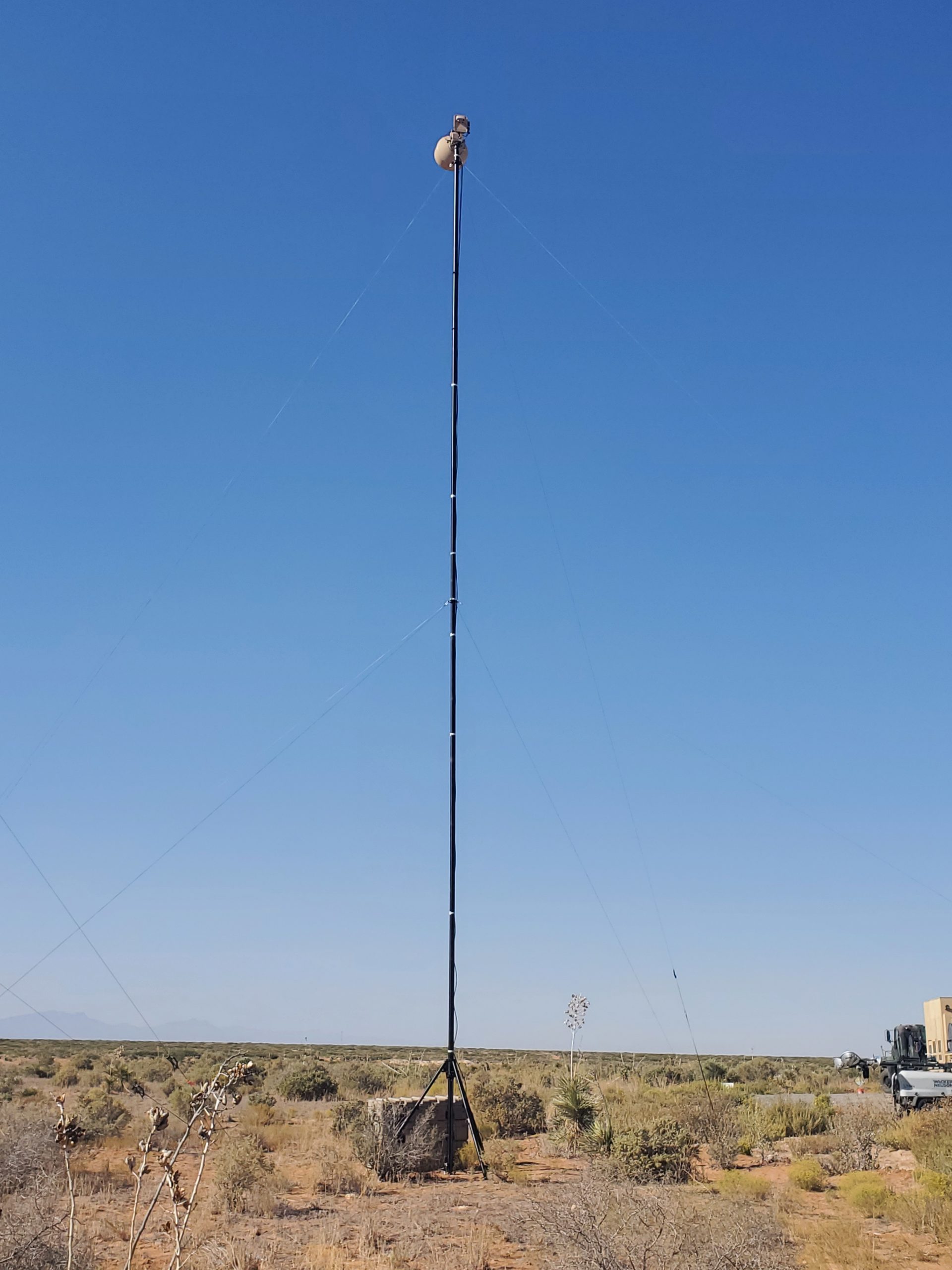

BlueSky 350 Series 18m Mast Integration with Cambium Network's PTP 700

350 Lift Series - 18 Meters (59 ft)

Integrated with

PTP 700 MLoS Connectivity Kit (CK)

Model Heights:

18

meters /

59

feet

Payload Capacity:

20.4

kg /

45

lbs

(See Capabilities Chart)

Wind Loading:

144.8

km/h /

90

mph

Deployment Time:

30 minutes, 2 people

Outside Diameter:

3.5

inches

Testing: MIL-STD-810G

Transport:

(3) 62x21x14.5 Custom Hard Cases
