Providing greater transmission power and supporting wide-range of configurations.

BlueSky Mast 200 Standard Series - AL1 Integration with TrellisWare TSM Radios

TrellisWare Technologies, Inc. is a global leader in highly advanced algorithms, waveforms, and communications systems, ranging from small form factor radio products to fully integrated solutions. The integration of TrellisWare and BlueSky Mast combines TrellisWare’s robust mobile ad-hoc networking (MANET) radios with BlueSky’s versatile and rapidly deployable mast systems. This collaboration creates a powerful, mobile, and elevated communication solution for military and public safety operations. As highlighted by TrellisWare, the integrated solution allows Special Operations Forces to quickly establish high-bandwidth, resilient communication networks in the field. An elevated TrellisWare radio on a BlueSky mast can serve as a key relay node, extending the MANET coverage and ensuring seamless communication for a team operating in a complex urban or challenging rural environment. This is especially useful for transmitting high-speed data like video and sensor information across the network.
Collaborative Partner
Trellisware
BlueSky Mast System
200 Standard Series - AL1 - 7 Meters (22.5 ft.)
Payload

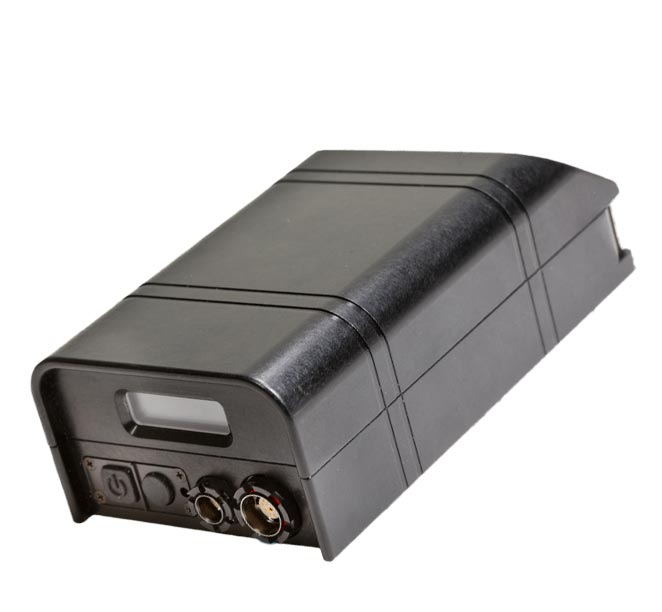

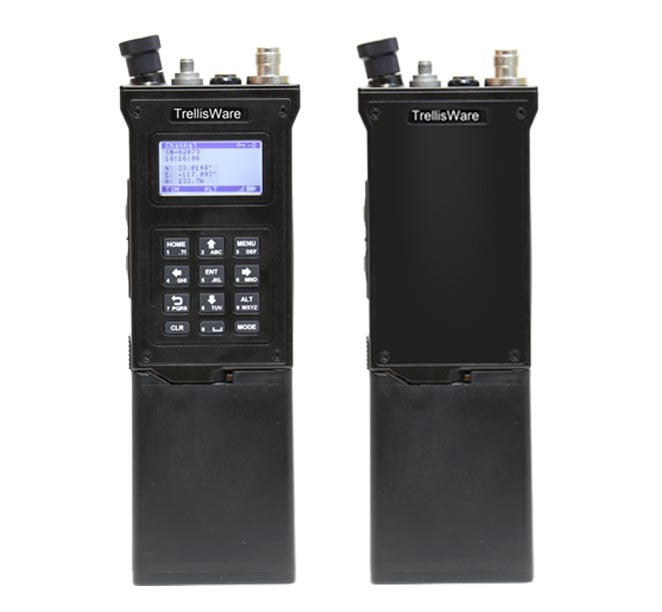

TW-875 TSM GhostTM Radio / TW-950 TSM ShadowTM Radio / TW-135 TSM ShadowR HPR
Benefits
Provides flexibility in deploying and enhancing TSM networks with a simplified radio design and built-in battery.
Features unparalleled performance powered by the TSM and Katana waveforms. TrellisWare’s signature radio provides an expanded frequency range, higher throughputs for streaming multiple HD videos, and offers the most flexible data interface options in its class.
Complements the TW-950 TSM Shadow by providing greater transmission power and supports a wide-range of configurations.
Mission Kit

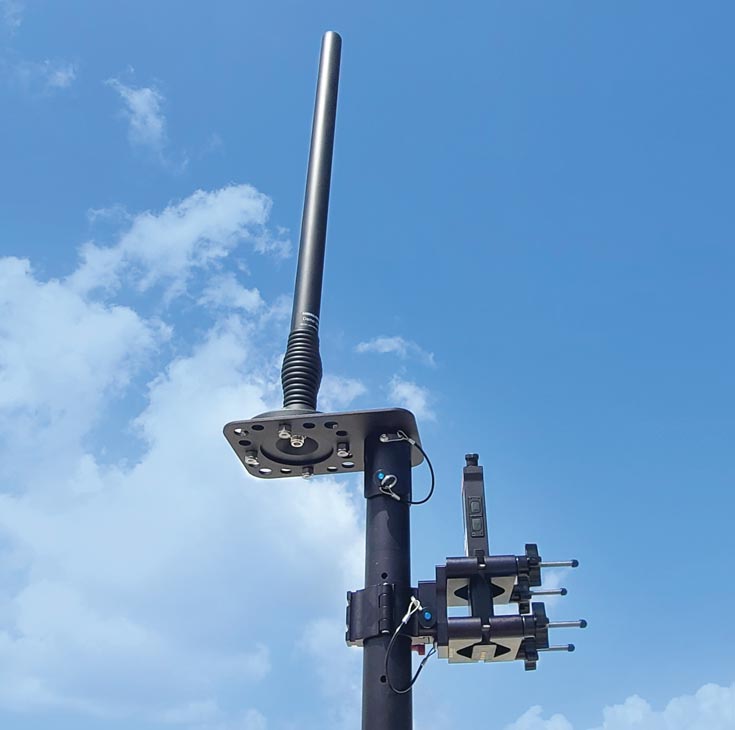

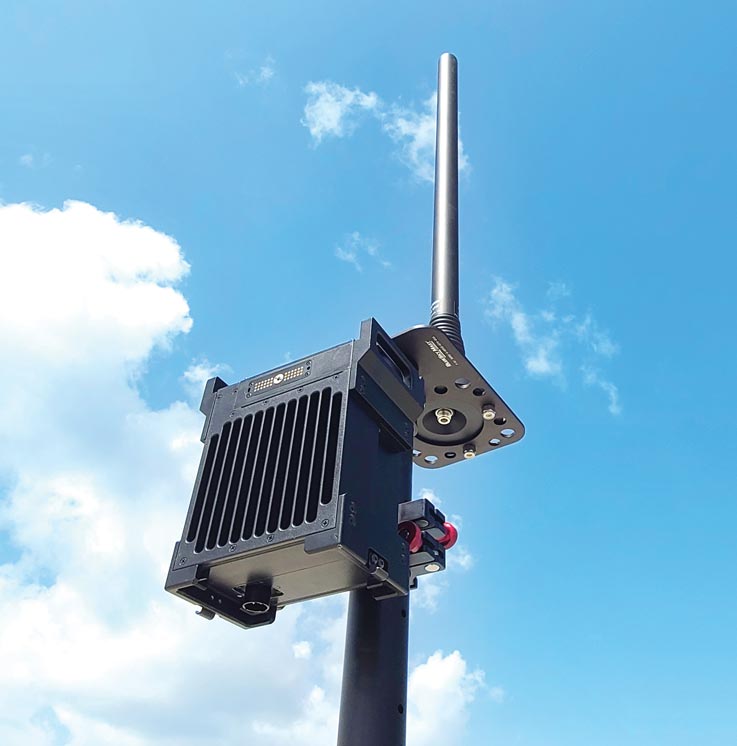

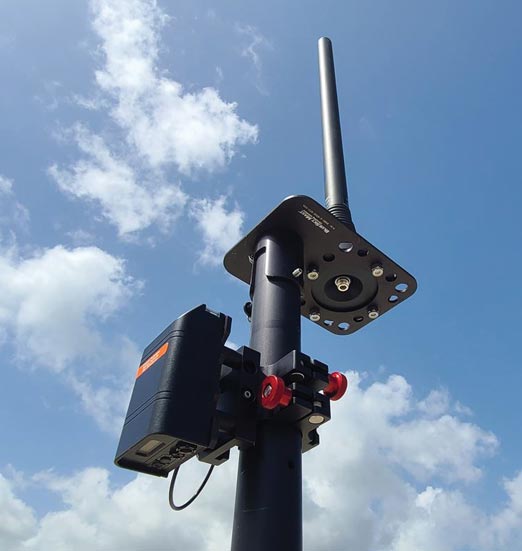

BlueSky Mast Standard Series AL1 Integrated with Trellisware TW-135 TSM Shadow HPR

200 Standard Series - AL1 - 7 Meters (22.5 ft.)

Integrated with

Trellisware TW-135 TSM Shadow HPR

Model Heights:

7

meters /

22.5

feet

Payload Capacity:

17

kg /

37.5

lbs

(See Capabilities Chart)

Wind Loading:

112.7

km/h /

70

mph

Deployment Time:

15 minutes, 1 to 2 people

Outside Diameter:

2

inches

Testing: MIL-STD-810G

Transport:

(1) 54x14x14 Custom Wheeling Carry Bag
