Model Heights:
Up to 25 m
Wind Loading:
See model chart
Deployment Time:
1
people;
Motor-driven; see model chart
Outside Diameter:
Testing: MIL-STD-810G
Transport:
Vehicle, shelter or ground mounted; may remain extended on the move

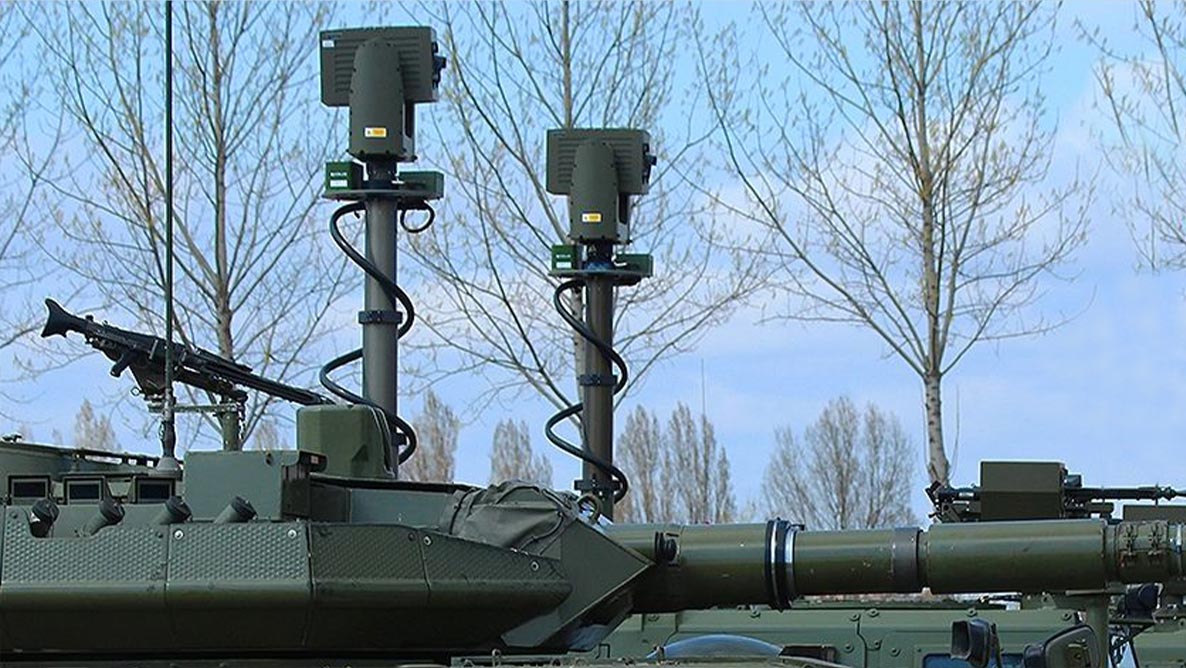

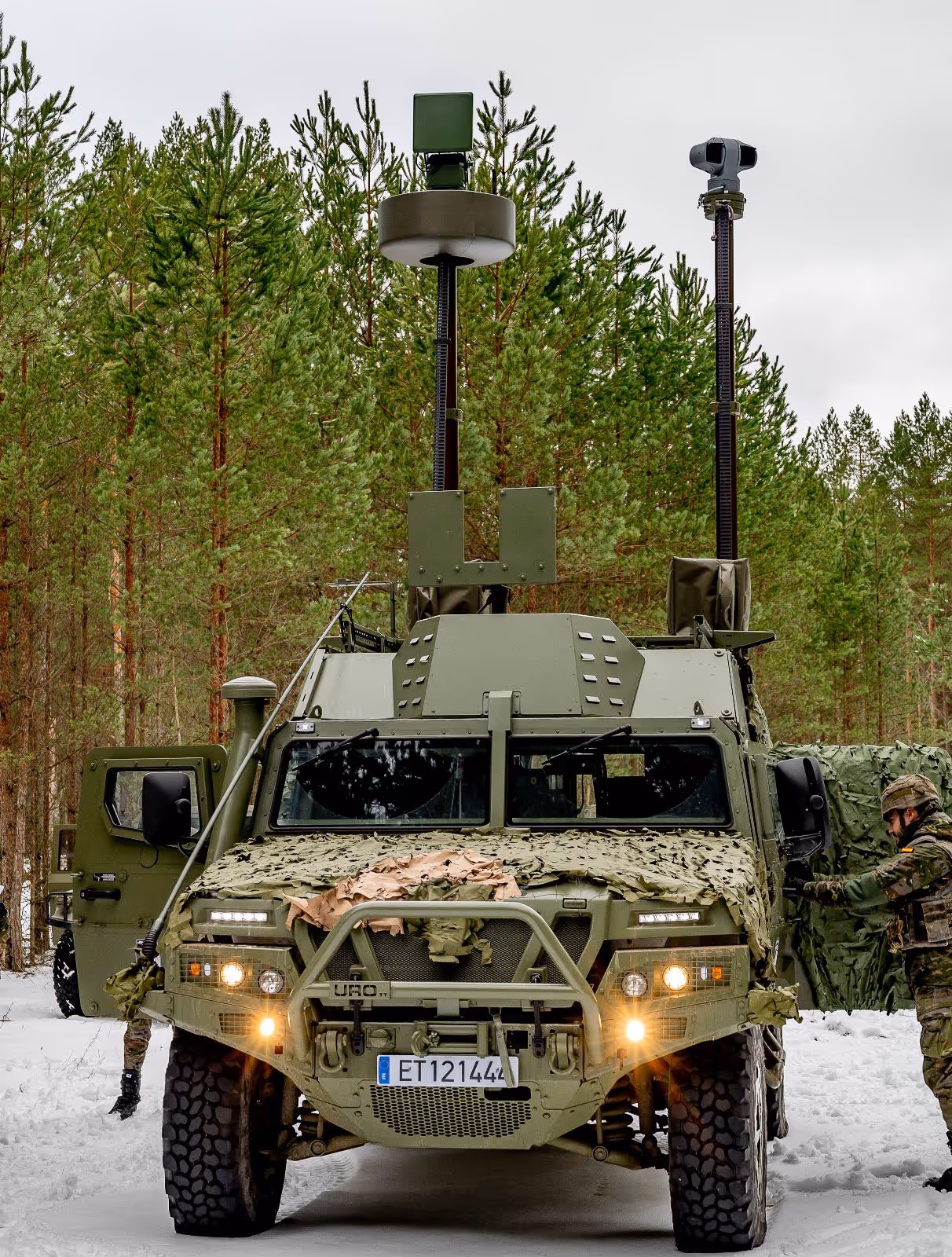

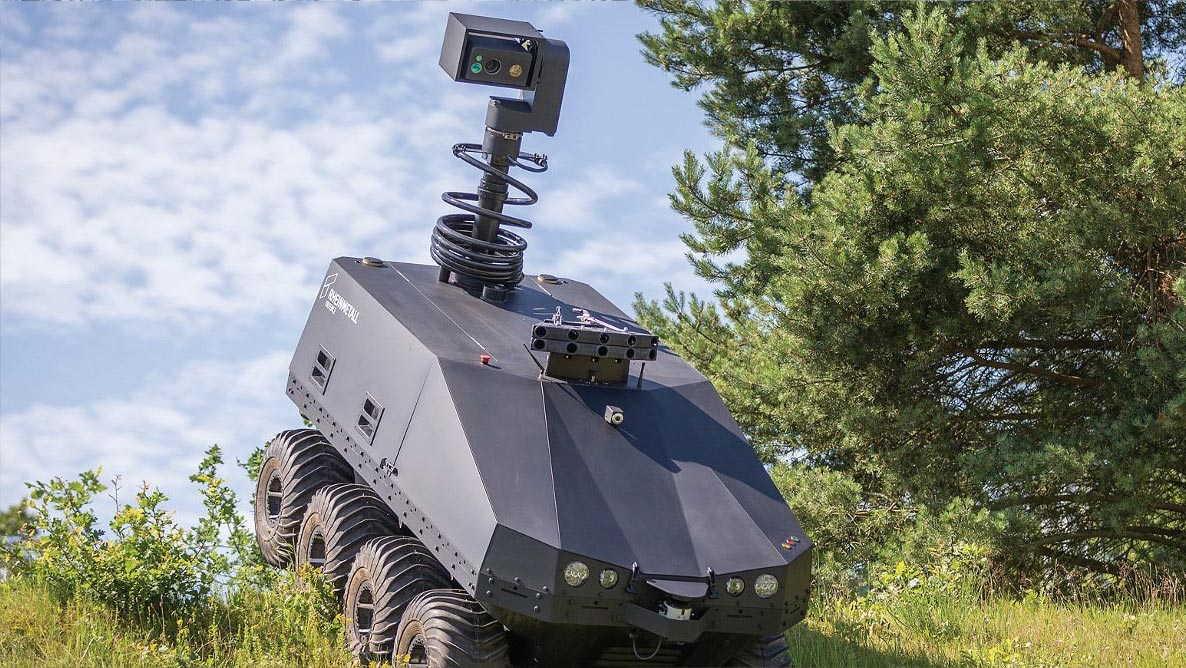

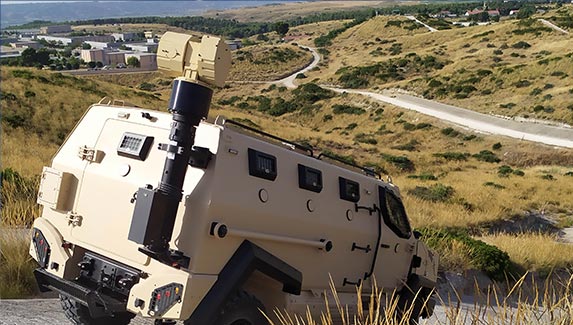

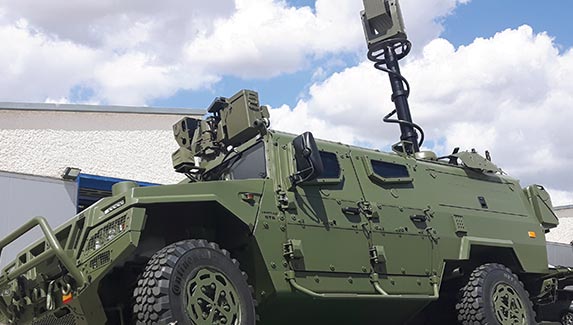

The MecMast Series is a screw-driven, electromechanical telescoping mast that combines heavy lifting strength, rigidity, reliability and precise positioning. It is built for military communications and surveillance missions where heavy payloads must go up fast and hold an exact height.
The screw drive holds any intermediate height with repeatable accuracy, needs little maintenance, and can stay extended while the vehicle is moving. Height and position can be read and controlled from a PC, laptop or remote control.
MecMast masts are tested to multiple MIL-STDs and are available anodized or painted in military green, sand, black and other colors.
Beyond the catalog range, BlueSky configures custom MecMast solutions and a broad range of accessories to fit the mounting site and the mission.
BlueSky 350 Lift Series Mast Integrated & Deployed
| System Height (ft) | 17.5 |
| System Height (m) | 5 |
| Payload (lbs) | 175 |
| Payload (kg) | 79.4 |
| System Height (ft) | 28 |
| System Height (m) | 8 |
| Payload (lbs) | 145 |
| Payload (kg) | 65.8 |
| System Height (ft) | 31.5 |
| System Height (m) | 10 |
| Payload (lbs) | 125 |
| Payload (kg) | 56.7 |
| System Height (ft) | 35 |
| System Height (m) | 11 |
| Payload (lbs) | 115 |
| Payload (kg) | 52.2 |
| System Height (ft) | 38.5 |
| System Height (m) | 12 |
| Payload (lbs) | 105 |
| Payload (kg) | 47.6 |
| System Height (ft) | 42 |
| System Height (m) | 13 |
| Payload (lbs) | 95 |
| Payload (kg) | 43.1 |
| System Height (ft) | 45.5 |
| System Height (m) | 14 |
| Payload (lbs) | 85 |
| Payload (kg) | 38.6 |
| System Height (ft) | 49 |
| System Height (m) | 15 |
| Payload (lbs) | 75 |
| Payload (kg) | 34 |
| System Height (ft) | 59 |
| System Height (m) | 18 |
| Payload (lbs) | 45 |
| Payload (kg) | 20.4 |
| Capabilities Chart |
