FM Series: Telescopic Masts for Next-Generation C2 Elevation

Rugged, maintenance-free telescoping masts that elevate mission-critical cameras, sensors and antennas on vehicles, trailers and fixed sites.

BlueSky is a small defense contractor dedicated to delivering products and solutions that close mission-critical capability gaps for the warfighter.

FM Series telescoping mast

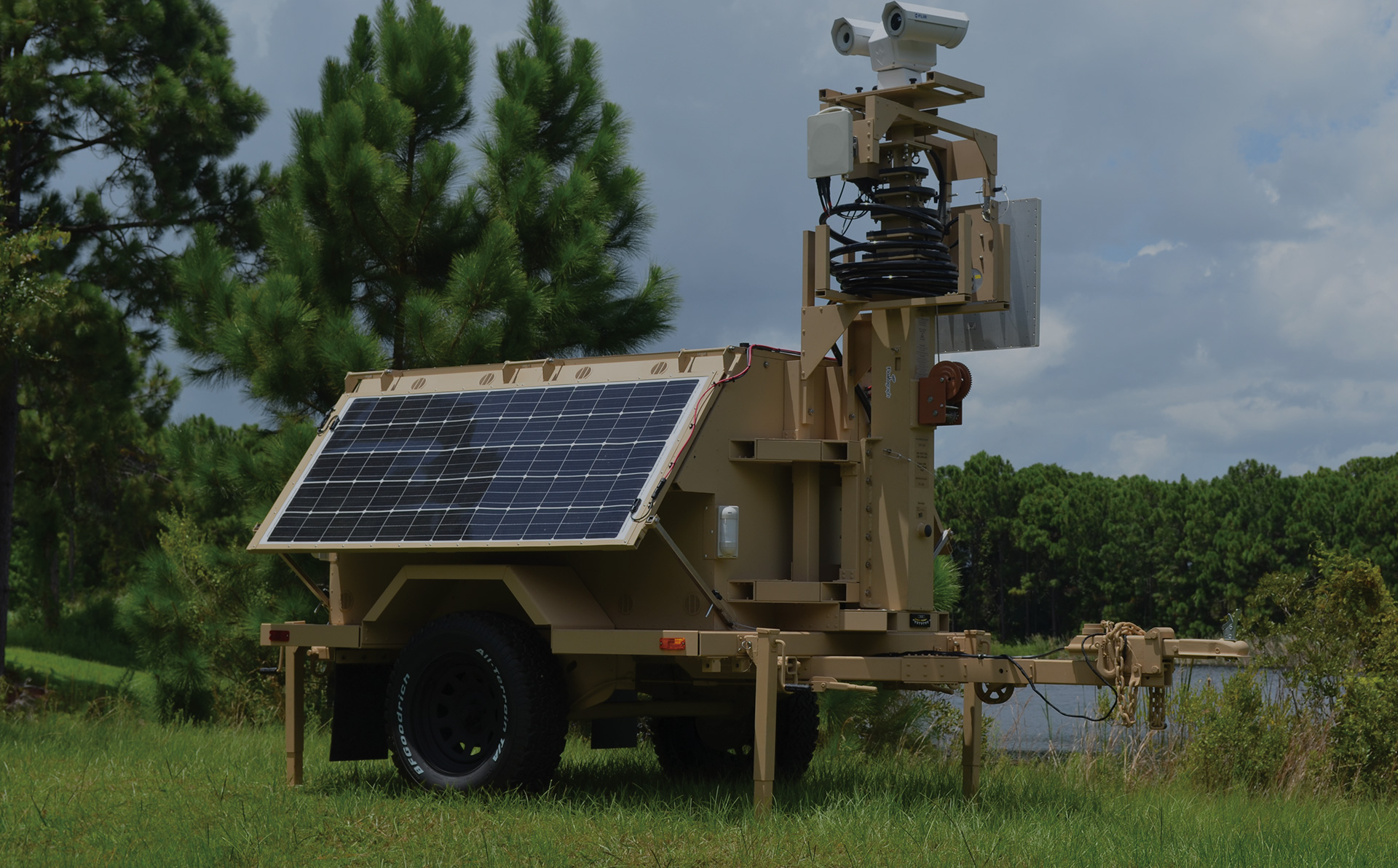

FM Series mast system in the field

Model heights

10 to 70 ft (extended)

Payload capacity

25 to 200 lbs

See capabilities chart ↓

Wind loading

Up to 70 mph with guy lines

Deployment

Manual or electric winch

Upper and lower safety switches

Transport

Vertical hard mount or tilt-to-horizontal for travel

Testing

MIL-STD-810

FM Series mast systems

Born of military and homeland security use

The FM Series is a rugged, all aluminum and stainless steel telescoping mast that carries 25 to 200 lb payloads at extended heights from 10 to 70 ft. Manual or electric winches raise the mast, with upper and lower electro-mechanical safety switches, cable guide rings and guy line connectors. It mounts vertically or tilts horizontal for travel, and adapts to a HMMWV bumper, trailer, receiver hitch, ground, wall or the transportable QuadPod mount. The design is nearly maintenance-free and MIL-STD-810 tested.

FM Series

Key capabilities

01

Camera, Sensor and Antenna Elevation

Cameras, sensors and antennas need a stable high point. The FM Series raises payloads from 25 to 200 lb up to 70 ft on a winch-driven telescoping mast.

02

Any Platform

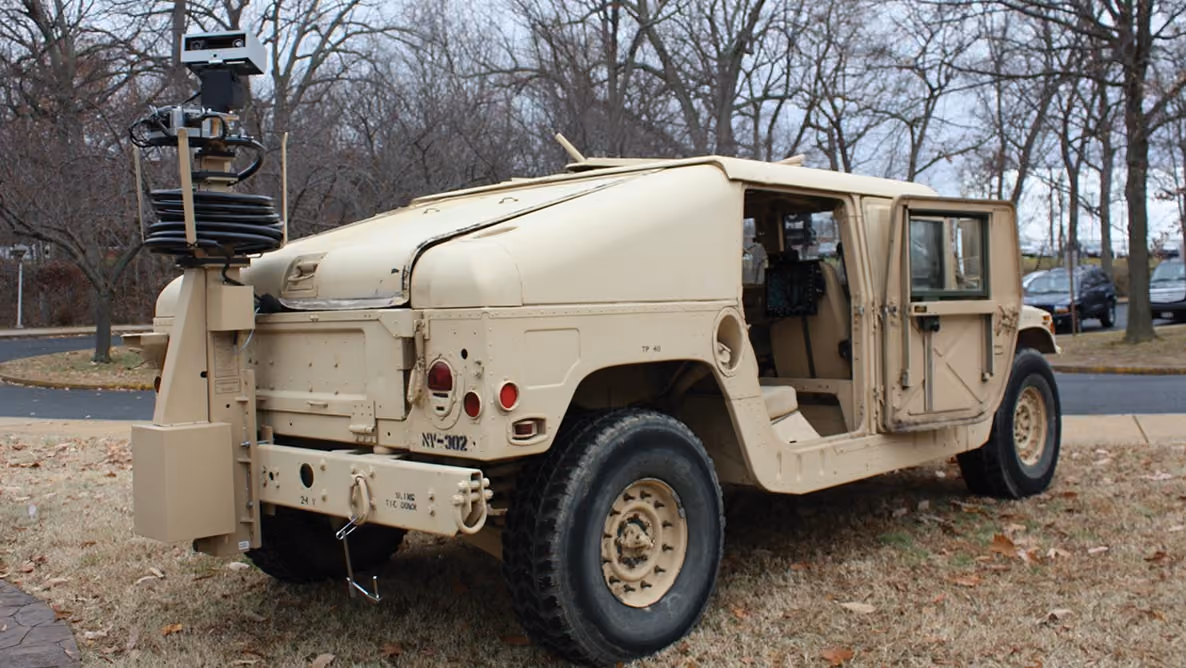

Every mast adapts to the platform: HMMWV bumper, trailer, receiver hitch, ground, wall or the transportable QuadPod, and it tilts horizontal for travel.

03

C2 On-the-Move and At-the-Halt

Command posts need elevation that moves with them. The FM Series supports C2 on-the-move and at-the-halt, with quick elevation and retraction and easy use from within combat vehicles.

04

Built for Harsh Environments

All aluminum and stainless steel construction, self-lubricating shims and a cold weather defrost system keep the mast nearly maintenance-free. It is MIL-STD-810 tested.

inside the FM Series

Military Grade Telescoping Mast

Every FM Series mast is MIL-STD-810 tested. Tap a feature to see where it sits on the mast.

FM Series telescoping mast, retracted, with electric winch (FM-20-50 shown)
Square, 4-hole mounting flange
Pigtail rings or cable clamps
Nylon collars
Mount on any section
Guy eyes
Stainless steel pull cables and sheaves
6061-T6 aircraft aluminum
Winches
Rear mounting flange (standard)
Drainage and defrost port

FM-20-50 shown

1Square, 4-hole mounting flange

For cameras, antennas and other payloads. Custom mast top adapter available for sensors.

2Pigtail rings or cable clamps

Cable guide rings on each section. NyCoil cable management also available.

3Nylon collars

For smooth operation, with self-lubricating shims.

4Mount on any section

Ability to mount other items on any mast section.

5Guy eyes

Guy line connectors at the top, middle and bottom.

6Stainless steel pull cables and sheaves

All aluminum and stainless steel construction.

76061-T6 aircraft aluminum

All aluminum and stainless steel construction. Nearly maintenance-free.

8Winches

Manual or electric (12 VDC / 24 VDC or 120 VAC), hand (steel or stainless) or hydraulic. Upper and lower electro-mechanical safety switches.

9Rear mounting flange (standard)

Vertical hard mount, or tilted horizontal for travel. Various standard and custom mounts available.

10Drainage and defrost port

Cold weather defrost system.

Payload chart

Pick the payload. Then the height.

Payload is the total weight of all devices, accessories and cabling mounted on the mast.

Mast model
Base tube size
Stages
Extended height
Retracted height
Payload
Mast weight

25 lb payload

FM-10-25
3-1/2"
4
10 ft
45.5 in
25 lb
76 lb
FM-20-25
4-1/2"
6
20 ft
66.5 in
25 lb
105 lb
FM-30-25
4-1/2"
6
30 ft
89 in
25 lb
123 lb
FM-40-25
5"
7
40 ft
103.75 in
25 lb
167 lb
FM-50-25
5"
7
50 ft
125.5 in
25 lb
191 lb
FM-70-25
6"
7
70 ft
169.25 in
25 lb
278 lb

50 lb payload

FM-10-50
4"
5
10 ft
44.13 in
50 lb
105 lb
FM-20-50
5"
7
20 ft
59.88 in
50 lb
134 lb
FM-30-50
5"
7
30 ft
82.88 in
50 lb
163 lb
FM-40-50
6"
8
40 ft
97.63 in
50 lb
221 lb
FM-50-50
7"
8
50 ft
116.63 in
50 lb
283 lb
FM-70-50
8"
8
70 ft
155.5 in
50 lb
413 lb

150–200 lb payload

FM-20-200
7"
6
20 ft
69.75 in
200 lb
203 lb
FM-40-150
7"
6
40 ft
120 in
150 lb
300 lb
FM-70-150
10"
6
70 ft
216.25 in
150 lb
660 lb

Other masts available with heights up to 100 ft and 1,500 lb payloads. Talk to a mast specialist →

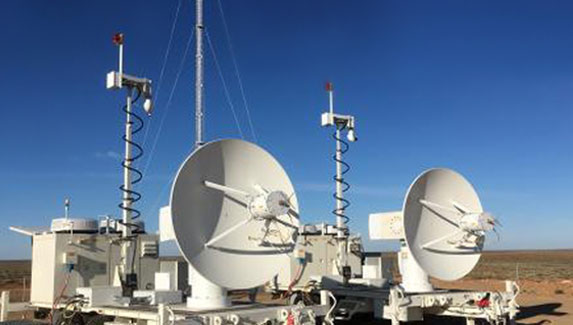

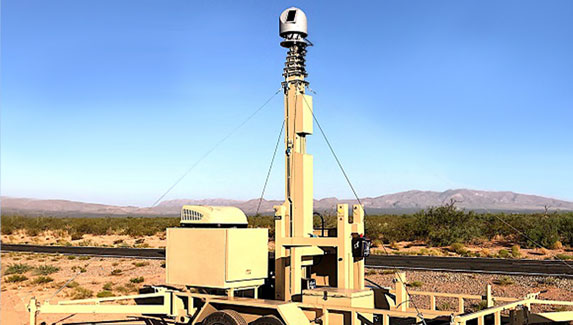

In the field

Where the FM Series elevates the mission. Trusted in the field.

On the move and at the halt: Winch-raised telescoping masts for Army ground vehicles, trailers and mobile command posts, from 10 to 70 ft.

Documents and training

Set it up right. Every manual and video.

FAQs

FM Series questions answered.

Straight answers on height, payload, setup and transport for the FM Series. Need something else? Talk to a mast specialist at 1-877-411-MAST (6278).

See all mast FAQs →

How high can a BlueSky Mast go?

Tripod masts reach up to 10 m (AL1 and AL2 Standard), 15 m (200 Lift Series - AL2) and 18 m (350 Lift Series). The vehicle-mounted MEC Series reaches up to 25 m. The Sidekick is a 2 m man-portable mast.

What is the maximum payload a BlueSky Mast can lift?

Payload depends on the mast model and height: the taller the mast, the lighter the allowed payload. On tripod masts the 350 Lift Series carries the most, up to 175 lbs at 5 m. The vehicle-mounted MEC Series lifts up to 400 kg. See the load table on each mast system page for the exact rating at every height.

Are BlueSky Masts telescoping or pneumatic?

The tripod masts are sectional, not telescoping or pneumatic: interlocking sections built for portability and rapid deployment. The FM Series (winch-driven) and MEC Series (screw-driven) are telescoping vehicle masts. None are pneumatic.

What military standards are BlueSky Masts tested to?

The 350 Lift Series, 200 Series tripod masts (AL1 and AL2) and the Sidekick are tested to MIL-STD-810H. Each mast system page lists the standard for that model. The MEC Series is compliant with MIL-STD-810G, 461F, 1275E, 1686C and 464C.

Can a BlueSky Mast be mounted on a vehicle?

Yes. The FM Series and MEC Series are vehicle-mounted telescoping masts: FM mounts to a HMMWV bumper, trailer, receiver hitch, wall or QuadPod, and the MEC Series can stay extended while the vehicle moves. The tripod masts are self-supporting and independent of vehicles and structures, and can be carried by any vehicle, helicopter or aircraft to the site without a trailer.

Are BlueSky Masts subject to ITAR?

No. BlueSky Mast equipment is exempt from ITAR. Commodity code 7308200000; ECCN EAR99.

Where can I buy a BlueSky Mast?

Buy directly from BlueSky, or through GSA Contract GS-07F-5916R or the TLS contract. Call 1-877-411-MAST (6278) or use the contact form to get answers before you buy.

How much does a BlueSky Mast cost?

Pricing depends on the model, height and accessories your mission needs. Call 1-877-411-MAST (6278) or use the contact form and we will confirm the right system and issue a no-obligation budgetary quote, valid for up to 30 days.

What is the production lead time?

A single system ships in 2 to 3 business days; up to 20 systems in 3 to 5 business days; more than 20 systems in 5 to 7 business days. Custom accessories are excluded and typically deliver 10 to 20 business days after final drawing approval.

Does BlueSky offer custom design services?

Yes. If a payload does not fit a catalog mount, BlueSky's design team models a custom interface in 3D and puts it into production. Pricing is based on requirements and scope; most custom accessories deliver 10 to 20 business days after final drawing approval.

How high do FM Series masts extend?

Standard models extend from 10 to 70 ft. Other masts are available with heights up to 100 ft.

How much can an FM Series mast carry?

25 to 200 lb, depending on the model: 25 lb and 50 lb models from 10 to 70 ft, 200 lb at 20 ft and 150 lb at 40 and 70 ft. Other masts are available with payloads up to 1,500 lb.

How is an FM Series mast raised?

By a manual or electric winch (12 VDC, 24 VDC or 120 VAC). Upper and lower electro-mechanical safety switches stop the mast at the ends of its travel.

What can an FM Series mast be mounted on?

Each mast adapts to the platform: a HMMWV bumper, trailer, receiver hitch, the ground, a wall or the transportable QuadPod mount. It mounts vertically or tilts horizontal for travel, and custom mounts are available.

How much maintenance does an FM Series mast need?

Very little. The masts are nearly maintenance-free and only need an occasional wash down with clear water.

Can an FM Series mast work in cold weather?

Yes. FM Series masts have a cold weather defrost system and a drainage and defrost port.

Is the FM Series built for C2 on the move?

Yes. The FM Series supports C2 on-the-move and at-the-halt. It integrates with existing Army ground vehicles and ground combat systems, is optimized for brigade combat teams (BCTs) and above, and suits the mobile command post. Crews can raise and retract it quickly from within combat vehicles.

What accessories fit the FM Series?

Tool-less accessories and custom vibration-dampening mounts secure C2 products and systems with a quick connect and disconnect. A custom mast top adapter is available for sensors, and NyCoil cable management is available for cabling.
